• Year
  • 1930 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 209426

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Wewattmeter - Gossen, P., & Co. KG PGCD;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 86 x 240 x 60 mm / 3.4 x 9.4 x 2.4 inch
  • Notes

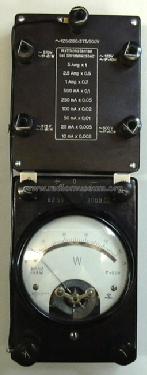

  • Wattmeter (Leistungsmesser) mit elektrodynamischem Messwerk durch Drehspule (170 Ohm) und Feldspule (6 Ohm). Meßbereich bis 50 Watt bei max. 500V ~, Strommeßbereich bis max. 5A.
    Meßbereichserweiterung durch anzapfbare Vorwiderstände. Preise von 90 - 106 RM, je nach Ausführung. Preise für Vorwiderstand von 35 - 58 RM, je nach Ausführung.

  • Net weight (2.2 lb = 1 kg)
  • 0.780 kg / 1 lb 11.5 oz (1.718 lb)
  • Price in first year of sale
  • 96.00 RM
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Roland Biesler. See "Data change" for further contributors.
