Arcadia 06Y

Arcadia 06Y; Graetz, Altena (ID = 94721) Radio

Arcadia 06Y; Graetz, Altena (ID = 94722) Radio

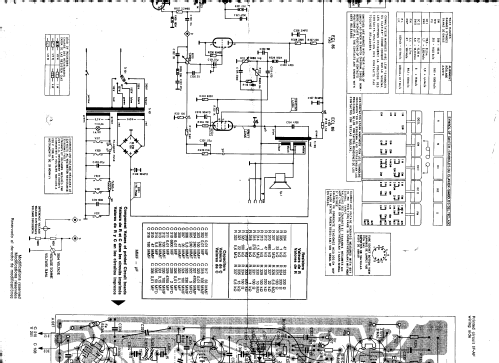

Arcadia 06Y; Graetz, Altena (ID = 94723) Radio

Arcadia 06Y; Graetz, Altena (ID = 94724) Radio

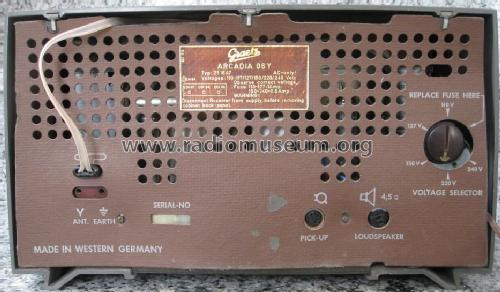

Arcadia 06Y; Graetz, Altena (ID = 1084658) Radio Arcadia 06Y; Graetz, Altena (ID = 1084661) Radio

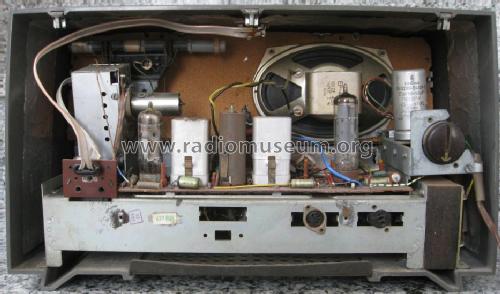

Arcadia 06Y; Graetz, Altena (ID = 1084663) Radio Arcadia 06Y; Graetz, Altena (ID = 1084666) Radio
Arcadia 06Y; Graetz, Altena (ID = 93916) Radio
Use red slider bar for more.

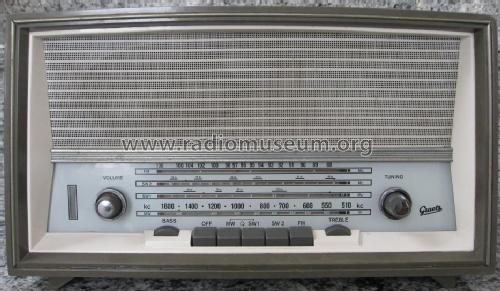

Arcadia 06Y; Graetz, Altena (ID = 1084658) Radio
Graetz, Altena: Arcadia 06Y [Radio] ID = 1084658 933x544
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arcadia 06Y, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Arcadia 06Y - Graetz, Altena Westfalen
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 400 x 230 x 180 mm / 15.7 x 9.1 x 7.1 inch
Notes Dioden: 2× AA113.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Mentioned in -- Original-techn. papers.

Model page created by Júlio Branco. See "Data change" for further contributors.
