Scerzo S7619-1
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112838

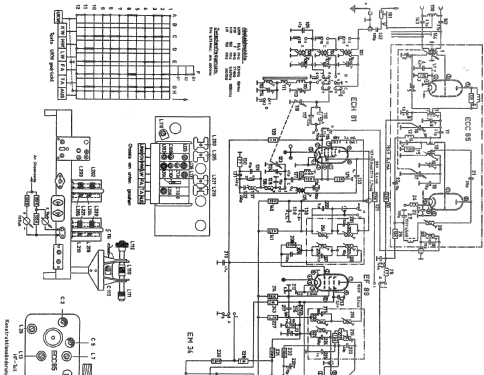

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Scerzo S7619-1 - Graetz, Altena Westfalen
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1070 x 845 x 420 mm / 42.1 x 33.3 x 16.5 inch
- Notes
- Wie Scerzo 7619, jedoch vorbereitet für Stereowiedergabe, doppelter Lautstärkepotentiometer, Stereoumschalter, Stereo-Plattenwechsler PE Rex A58. Der Stereo-Zusatzverstärker 604 kann für den 2. Kanal eingebaut werden. Für die Wiedergabe des 2. Kanals wird der Lautsprechertisch 607 benutzt.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Walter Groer. See "Data change" for further contributors.
