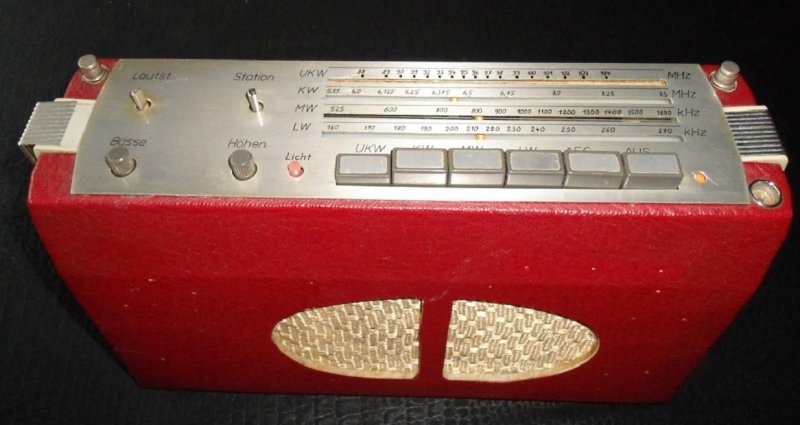

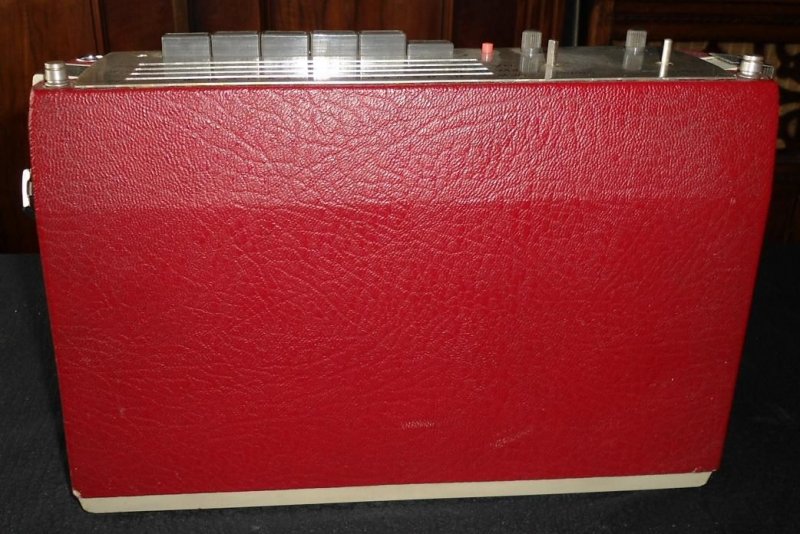

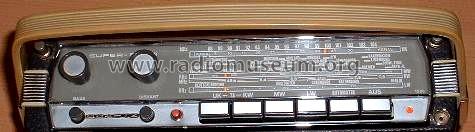

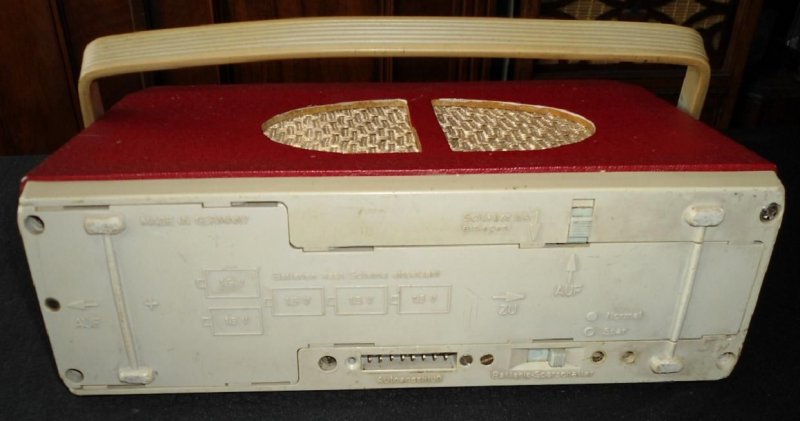

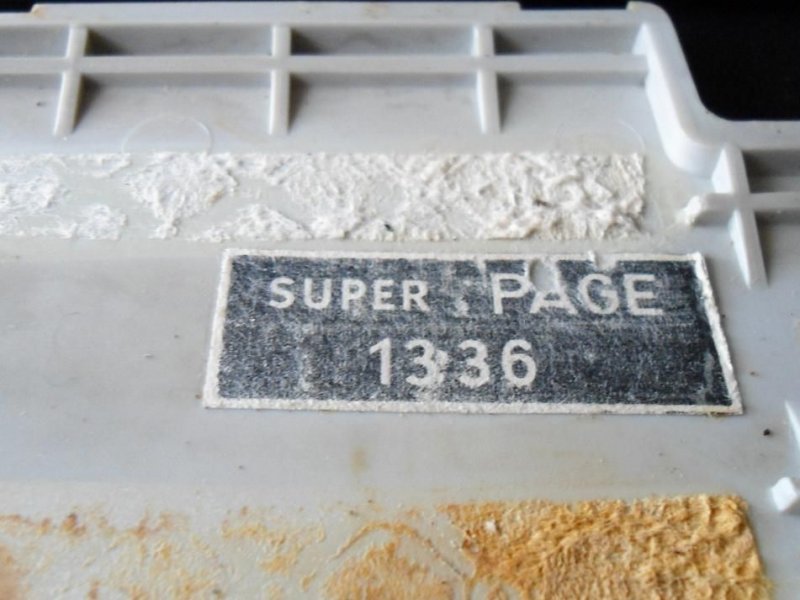

Superpage 1336

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1798

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• AF102 AF125 AF126 AF126 AF126 AF126 OC71 AC151VI AC151VI AC152 AD148 AD148

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage

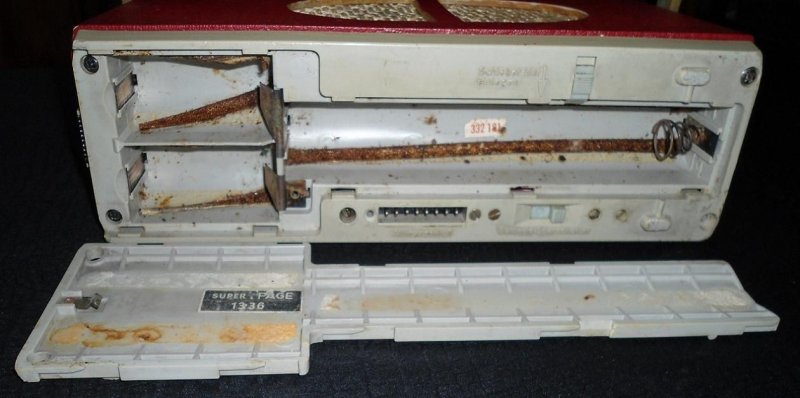

• Dry Batteries / 5× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• from Radiomuseum.org
• Model: Superpage 1336 - Graetz, Altena Westfalen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 190 x 92 mm / 11.4 x 7.5 x 3.6 inch

• Notes
• Bei Kfz-Einbau steigt die Ausgangsleistung auf 5 W. Gefertigt in den Farben: perlweiß, anthrazit, kirschrot und tabak. Gehäuse besteht aus stossfestem Polystyrol und ist kaschiert.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Price in first year of sale
• 488.00 DM

• Source of data
• Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau
