2012GW; Grundig Radio- (ID = 16230) Radio

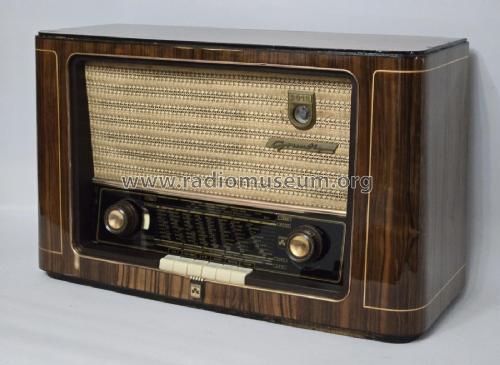

Grundig Radio-: 2012GW [Radio] ID = 16230 725x484
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2012GW, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1952/1953 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UC92 UCH81 UF41 UABC80 UM4 UL41
Principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage AC/DC-set / 110; 125; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 2012GW - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 545 x 340 x 242 mm / 21.5 x 13.4 x 9.5 inch
Notes
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 298.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
