955WI/3D (955W/3D) Export f. Italien

955WI/3D ; Grundig Radio- (ID = 2053685) Radio

955WI/3D ; Grundig Radio- (ID = 2053686) Radio

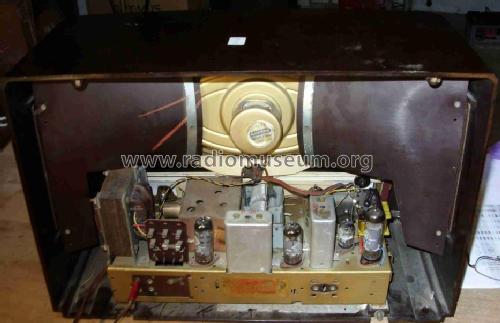

955WI/3D ; Grundig Radio- (ID = 792542) Radio 955WI/3D ; Grundig Radio- (ID = 792543) Radio
955WI/3D ; Grundig Radio- (ID = 792074) Radio 955WI/3D ; Grundig Radio- (ID = 891526) Radio
955WI/3D ; Grundig Radio- (ID = 891527) Radio 955WI/3D ; Grundig Radio- (ID = 891528) Radio
955WI/3D ; Grundig Radio- (ID = 891529) Radio
Use red slider bar for more.

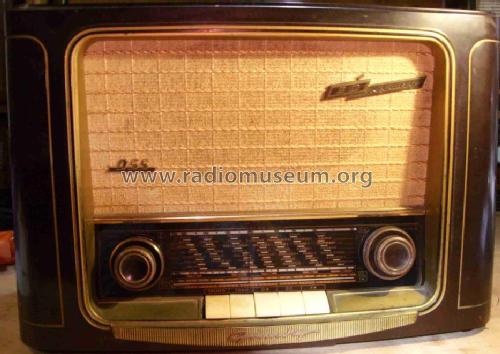

955WI/3D ; Grundig Radio- (ID = 792542) Radio
Grundig Radio-: 955WI/3D [Radio] ID = 792542 933x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model 955WI/3D (955W/3D) Export f. Italien, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EC92 ECH81 EF89 EBC41 EAA91 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz; 2 AF stage(s); Export model
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 955WI/3D [Export f. Italien] - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 445 x 310 x 225 mm / 17.5 x 12.2 x 8.9 inch
Notes

Das Gerät ist für den italienischen Markt da die Skala italienisch beschriftet ist. Daher der Zusatz "I" (i).

Dial lamp: 7V/0,3A. Chassis similar to the mod. 955W/3D-EF/Ph/I.

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
