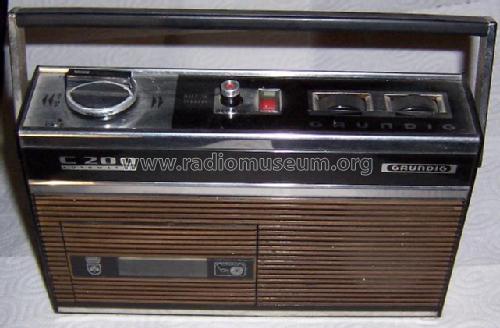

C200 Automatic

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1969/1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27808

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

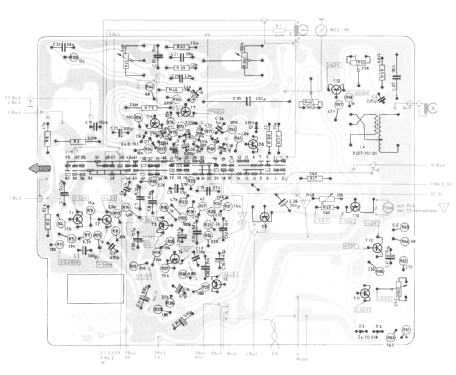

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BC109 BC108 BC108 BC108 BC108 BC108 BC108 BC181 BC223 BC148 AC128 AC187 AC188

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C200 Automatic - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 150 x 70 mm / 9.8 x 5.9 x 2.8 inch

• Notes

• Aussteuerungsautomatik nicht abschaltbar.
  Netzbetrieb mit zusätzlichem Netzteil möglich.
  Betrieb im Auto über Autohalterung 473 aus 6-V- oder 12-V-Autobatterie möglich;

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970
