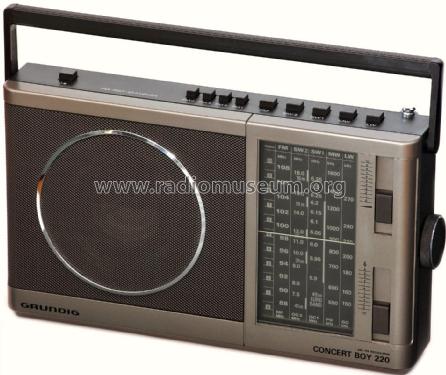

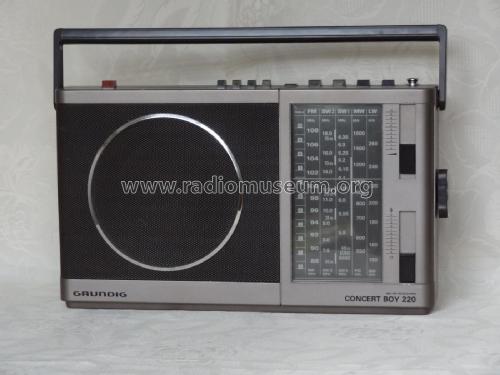

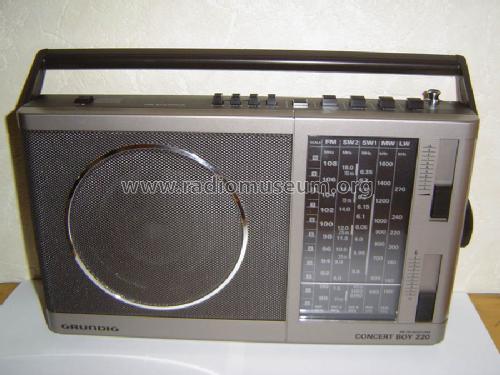

Concert-Boy 220a
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1984 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278192
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Vendu
Vendu
Vendu
Vendu
Vendu
eBay item number:266167960307
eBay item number:266167960307
eBay item number:266167960307
eBay item number:266167960307
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 - 240 / D: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Concert-Boy 220a - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 325 x 190 x 70 mm / 12.8 x 7.5 x 2.8 inch
- Notes
-
Der Grundig Concert-Boy 220a ist ein Reiseempfänger für Batterie- und Netzbetrieb.

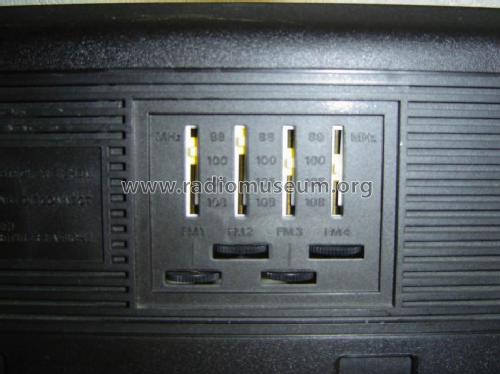

4 FM-Preset-Tasten (Fest-Stationen einstellbar).Siehe auch Grundig Concert Boy 220.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
