• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1966/1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 111905

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

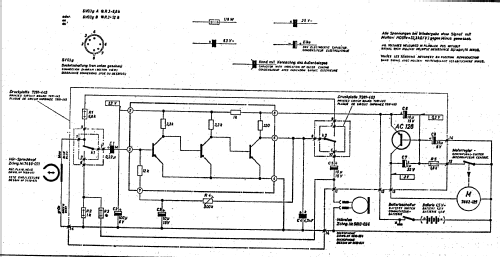

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• AC128 TAA111

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elektronisches Notizbuch EN3 [Nr.: > 150000] - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 134 x 37 x 64 mm / 5.3 x 1.5 x 2.5 inch

• Notes
• Zweispur; Aufnahmezeit 2× 22 min für Doppelkassette mit 57 m Tripleband.
  Mikrofon = Lautsprecher

• Mentioned in
• Funk-Technik (FT) (5/1966, S. 162 / Beschreibung, Schema (EN3 alt und neu))

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
