• Year
  • 1967–1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 2211
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

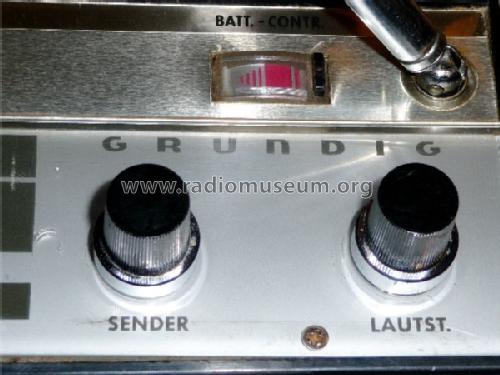

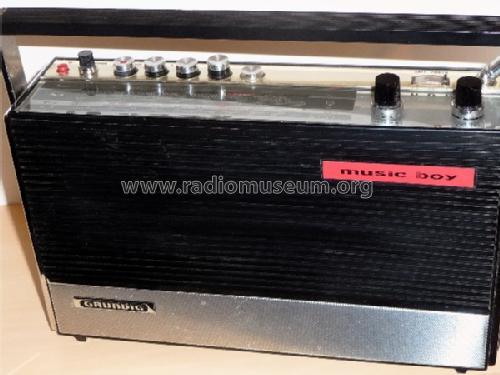

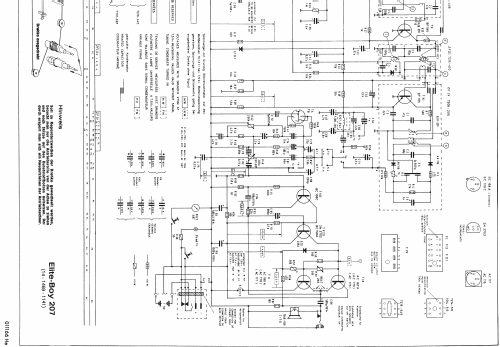

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 2×4,5; 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Elite-Boy 207 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 180 x 90 mm / 11.8 x 7.1 x 3.5 inch
  • Notes
  • Netzbetrieb mit zusätzlichem Netzteil möglich; Anschluss an 6-V- oder 12 V-Autobatterie über entsprechendes Batteriekabel.
  • Net weight (2.2 lb = 1 kg)
  • 2.4 kg / 5 lb 4.6 oz (5.286 lb)
  • Mentioned in
  • -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 11)
  • Literature/Schematics (1)
  • -- Original-techn. papers. (ETL-Liste März 1967)
  • Literature/Schematics (2)
  • -- Original-techn. papers. (Grundig Reparaturhelfer 1966)
