• Year
  • 1955–1958
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 86082
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • EC92
  • Wave bands
  • - without
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Ferndirigent 7602 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 155 x 60 x 131 mm / 6.1 x 2.4 x 5.2 inch
  • Notes

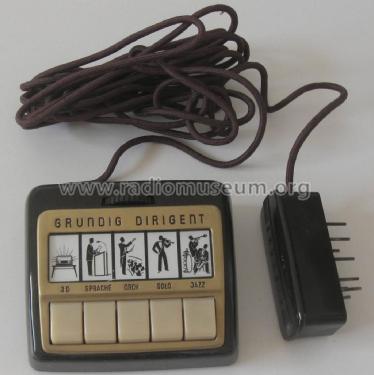

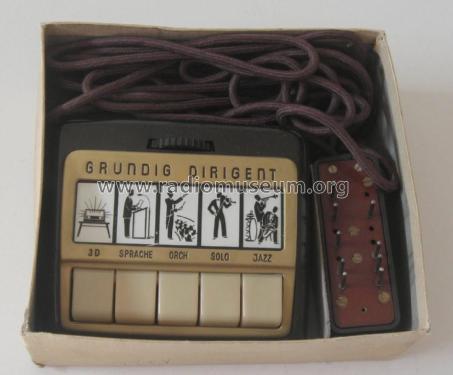

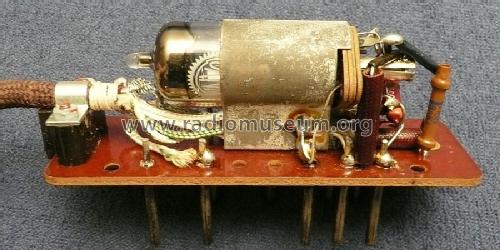

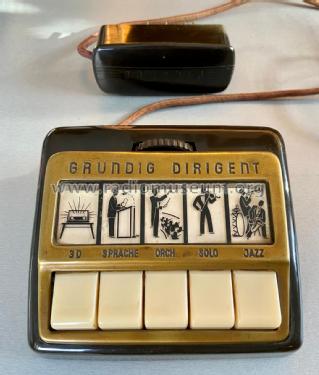

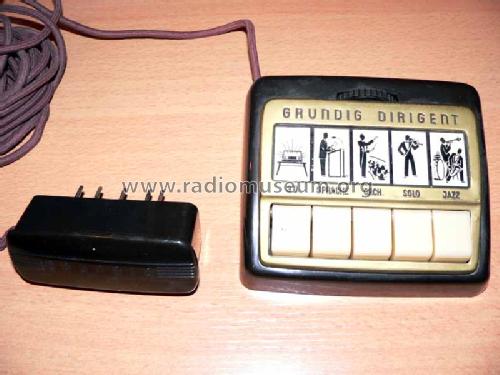

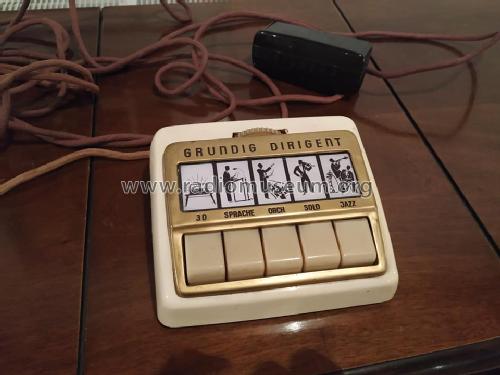

  • Fernbedienung mit Leuchtfeldern für die Klangtasten. Im Anschluss-Stecker befindet sich aktiver Verstärker, der die Dämpfung des Klangregelnetzwerks ausgleicht.

    Passend für Modelle 1955/1956, z.B 4055.

    Siehe auch 3-D-Dirigent mit Netzschalter statt 3D-Taste. Dort findet sich die Dokumentation, welche Modelle für welche Versionen des Ferndirigenten vorgesehen sind.

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Price in first year of sale
  • 38.00 DM
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Udo Janssen. See "Data change" for further contributors.
