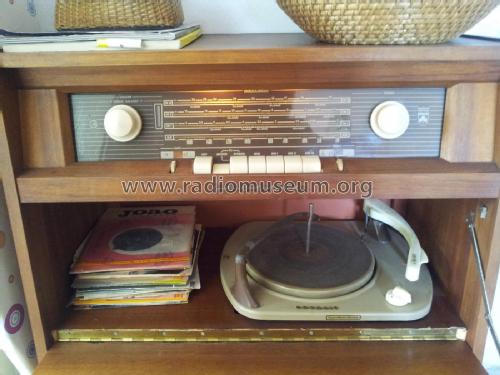

Fleetwood Stereo Console SO102/60CA

Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 230790) Radio Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 230791) Radio
Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 230792) Radio Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 230794) Radio
Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 230795) Radio Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 1735330) Radio
Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 1735331) Radio
Use red slider bar for more.
Fleetwood Stereo Console SO102/60CA; Grundig Radio- (ID = 230790) Radio
Grundig Radio-: Fleetwood Stereo Console SO102/60CA [Radio] ID = 230790 477x442
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fleetwood Stereo Console SO102/60CA, Grundig (Radio-Vertrieb, RVF, Radiowerke):
By courtesy of Dominique Pharan, Quebec-Cuebec, Canada

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1959/1960 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM84 ECC83 EL95 EL95
Principle Super-Heterodyne (Super in general)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Fleetwood Stereo Console SO102/60CA - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 730 x 800 x 390 mm / 28.7 x 31.5 x 15.4 inch
Notes The Grundig Fleetwood Stereo Console SO102/60CA (SO 102/60 CA) is the version for Canada of SO 102/60. For the Grundig Fleetwood SO102/60CA yopu can therefore use the schematic of the SO102/60.
Net weight (2.2 lb = 1 kg) 28 kg / 61 lb 10.8 oz (61.674 lb)
External source of data Dominik Lebel, Quebec, Canada

Model page created by Ernst Erb. See "Data change" for further contributors.
