K-RCD 100

K-RCD 100; Grundig Radio- (ID = 788428) Radio

K-RCD 100; Grundig Radio- (ID = 788429) Radio

K-RCD 100; Grundig Radio- (ID = 788430) Radio

K-RCD 100; Grundig Radio- (ID = 788431) Radio

K-RCD 100; Grundig Radio- (ID = 788432) Radio

K-RCD 100; Grundig Radio- (ID = 788433) Radio

K-RCD 100; Grundig Radio- (ID = 788434) Radio

K-RCD 100; Grundig Radio- (ID = 788435) Radio

K-RCD 100; Grundig Radio- (ID = 788436) Radio

K-RCD 100; Grundig Radio- (ID = 788437) Radio
K-RCD 100; Grundig Radio- (ID = 788458) Radio
Use red slider bar for more.
K-RCD 100; Grundig Radio- (ID = 788458) Radio
Grundig Radio-: K-RCD 100 [Radio] ID = 788458 933x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model K-RCD 100, Grundig (Radio-Vertrieb, RVF, Radiowerke):

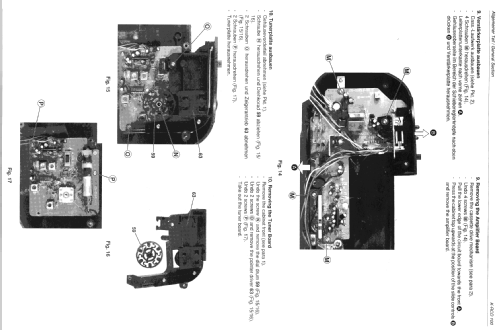

Bild aus Grundig Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1995 ?? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 230/7x1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 6.4 W (unknown quality)
from Radiomuseum.org Model: K-RCD 100 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Notes Grundig Kofferradio K-RCD 100 mit Recorder und CD Player; Musikleistung 2x3,2 Watt
Literature/Schematics (1) Original Grundig Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
