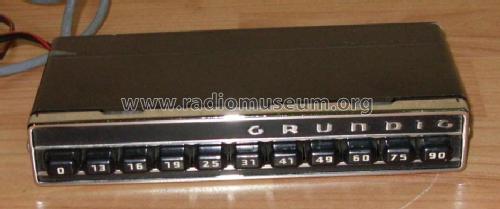

Kurzwellenvorsatz KWV1000

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1970–1979
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 28465
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Main principle
  • Superheterodyne (common); ZF/IF Bandmitte: 1000 kHz
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Kurzwellenvorsatz KWV1000 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 178 x 30 x 86 mm / 7 x 1.2 x 3.4 inch
  • Notes

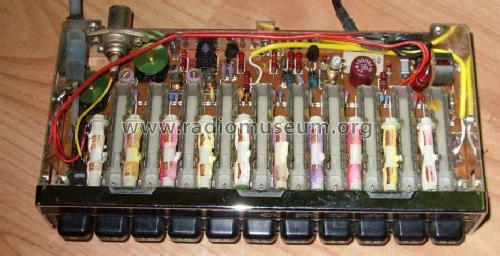

  • Der Grundig Kurzwellenvorsatz KWV1000 ist ein Frequenzumsetzer, der die 10 Kurzwellenbänder von 13 m bis 90 m auf den Mittelwellenbereich umsetzt, wobei die jeweilige KW-Bandmittenfrequenz der Bänder mit abgleichbaren Oszillatoren
    (49 m; 25 m; 13 m; 16 m; 19 m) einer Abstimmfrequenz des nachgeschalteten MW-Autosupers von 1 MHz entspricht. Die restlichen Bandmittenfrequenzen
    (90 m; 75 m; 60 m; 41 m; 31 m) ergeben sich durch das Zuschalten von Festkondensatoren zu den jeweiligen Oszillatoren und tolerieren entsprechend um 1 MHz.
    [Aus: Grundig Reparaturhelfer zum KWV1000]

    Wellenbereiche KW:
    13 m = 21.450…21.850 kHz;
    16 m = 17.480…17.900 kHz;
    19 m = 15.100…15.800 kHz;
    25 m = 11.600…12.100 kHz;
    31 m = 9.400…9.900 kHz;
    41 m = 7.300…7.350 kHz;
    49 m = 5.900…6.200 kHz;
    60 m = 4.750…5.060 kHz;
    75 m = 3.900…4.000 kHz;
    90 m = 3.200…3.400 kHz.

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Price in first year of sale
  • 117.00 DM
  • External source of data
  • Erb
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • Handbuch für Rundfunk Fernsehen Phono 1978 (Thiele)
  • Literature/Schematics (2)
  • Funk-Technik (FT) (5/1971, S. 160 / Beschreibung, Schema)
