Majestic 4090USA

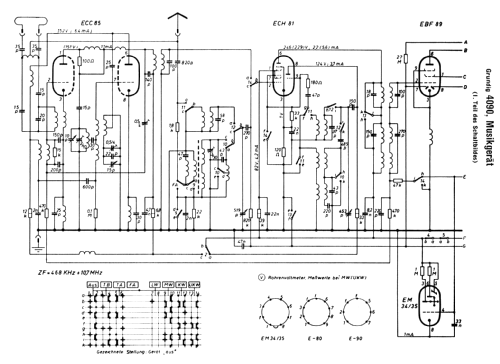

Majestic 4090USA; Grundig Radio- (ID = 243691) Radio

Majestic 4090USA; Grundig Radio- (ID = 243692) Radio

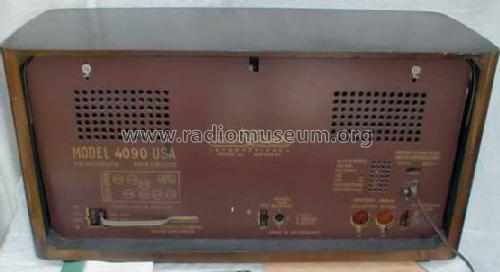

Majestic 4090USA; Grundig Radio- (ID = 98202) Radio Majestic 4090USA; Grundig Radio- (ID = 98200) Radio
Majestic 4090USA; Grundig Radio- (ID = 98201) Radio Majestic 4090USA; Grundig Radio- (ID = 98203) Radio
Majestic 4090USA; Grundig Radio- (ID = 858126) Radio Majestic 4090USA; Grundig Radio- (ID = 1018154) Radio
Majestic 4090USA; Grundig Radio- (ID = 1615420) Radio Majestic 4090USA; Grundig Radio- (ID = 1615422) Radio
Majestic 4090USA; Grundig Radio- (ID = 1615423) Radio
Use red slider bar for more.
Majestic 4090USA; Grundig Radio- (ID = 98202) Radio
Grundig Radio-: Majestic 4090USA [Radio] ID = 98202 556x364
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 4090USA, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956 ? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 EAA91 EM34 EC92 ECC83 EL95 EL95
Principle Super-Heterodyne (Super in general); ZF/IF 10700/468 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Majestic 4090USA - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 710 x 310 x 360 mm / 28 x 12.2 x 14.2 inch
Notes Export model for the US-Market; imported in USA by Majestic International Sales Illinois.
Net weight (2.2 lb = 1 kg) 16.2 kg / 35 lb 10.9 oz (35.683 lb)
Collectors' prices

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5105 models, 4307 with images and 3458 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Majestic 4090USA
Threads: 1 | Posts: 1
Hits: 1667     Replies: 0
grundig: 4090USA (4090 USA); Majestic
George Boettcher Jr.
09.Sep.06
  1

I need your help.  I have completed a full restoration of a Grundig Majestic 4090/USA.  It appears to work great and only needs an alignment.  The alignment sheet I have is for a 4090 European version and it is written in German.  The test points and generator frequencies do not match the USA version.  Does anyone have a copy of the alignment procedures for the 4090/USA and would be willing to share a copy with me to complete this project.   Thanks

oldradios[A*T]tampabay.rr.com


Grundig Radio-: Majestic 4090USA
