Majestic Hi-Fi Sound 2068 USA

Majestic Hi-Fi Sound 2068 USA; Grundig Radio- (ID = 1011312) Radio Majestic Hi-Fi Sound 2068 USA; Grundig Radio- (ID = 1011311) Radio
Majestic Hi-Fi Sound 2068 USA; Grundig Radio- (ID = 539961) Radio
Use red slider bar for more.
Majestic Hi-Fi Sound 2068 USA; Grundig Radio- (ID = 1011312) Radio

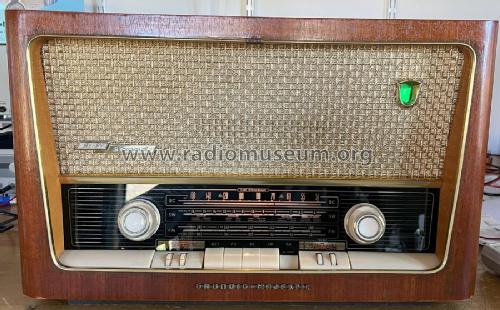

Grundig Radio-: Majestic Hi-Fi Sound 2068 USA [Radio] ID = 1011312 900x704
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic Hi-Fi Sound 2068 USA, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957 ? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6:
Principle Super-Heterodyne (Super in general)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Majestic Hi-Fi Sound 2068 USA - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Grundig Majestic 2068 USA Hi-Fi Sound;
US export version of the domestic Musikgerät 2068, FM up to 108 MHz, english labeled, tuning indicator tube, four sound controls.
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
