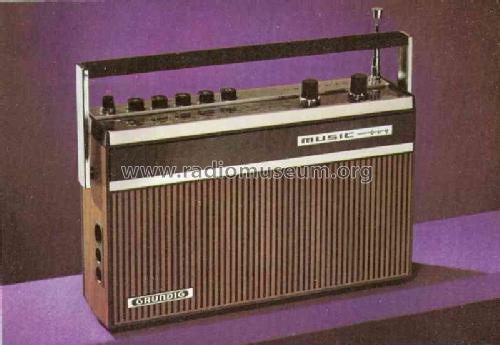

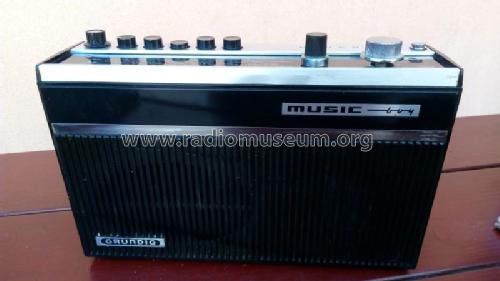

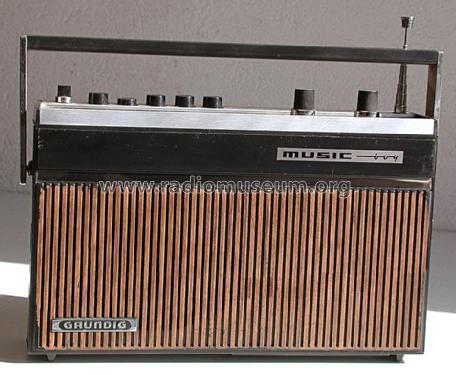

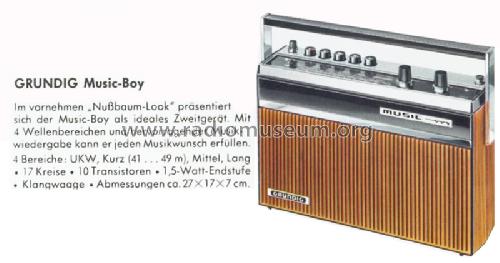

Music-Boy 208

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2213

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

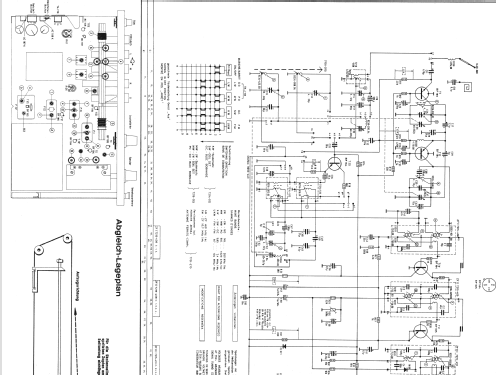

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF185 BF185 BF185 BF184 BF184 BF184 BC108 2N3702 AC187 AC188

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 2 × 4,5; 9 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Music-Boy 208 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 170 x 70 mm / 10.6 x 6.7 x 2.8 inch

• Notes

• UKW 88 - 104 MHz.

  Batteriebetrieb:
  2x Flachbatterie 4,5 Volt oder 1x Blockbatterie 9 V nach IEC 6F100.
  Netzbetrieb mit zusätzlichem Netzteil (z.B. Grundig TN12A) möglich.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Price in first year of sale
• 3,650.00 BFr

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb
