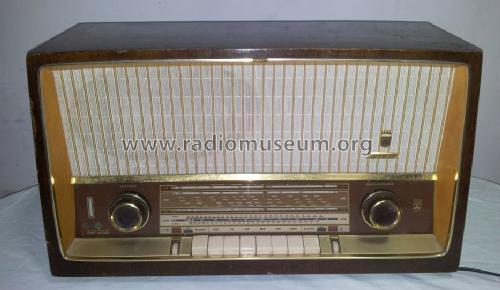

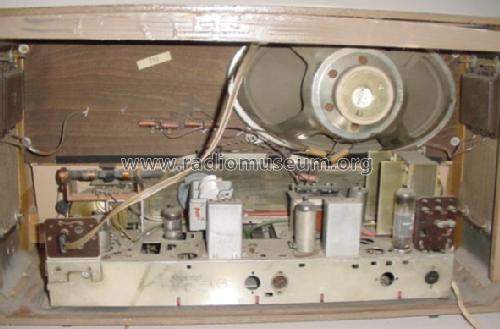

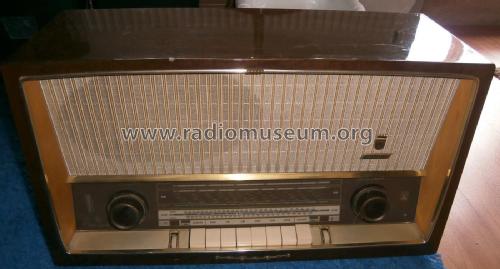

Musikgerät 3160; Grundig Radio- (ID = 95882) Radio
Grundig Radio-: Musikgerät 3160 [Radio] ID = 95882 579x393
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät 3160, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC83 EM84 ELL80
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Musikgerät 3160 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 565 x 330 x 217 mm / 22.2 x 13 x 8.5 inch
Notes 2 Dioden OA174, OA174,
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Price in first year of sale 299.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5649 models, 4836 with images and 3832 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Musikgerät 3160
Threads: 1 | Posts: 3
Hits: 2442     Replies: 2
grundig: 3160 or 3160U; Musikgerät
Robert Sarbell
15.Jan.05
  1 Photograph number 4 is the only one which is the model 3160. . .all other photos depict the model 3160U. Although the differences are somewhat minor, I respectfully request some resolution. A prospective member has asked for assistance to locate a dial glass for the model 3160, and some confusion exists as to which dial glass he actually needs.
Robert
Konrad Birkner † 12.08.2014
19.Jan.05
  2 We tried to cure the problem. Please check.
Robert Sarbell
19.Jan.05
  3 Dearest colleagues Erb, Birkner, and Müller,

Thank you so very much for locating and replacing the "misplaced photos". . . .I had total confidence that it was an easy task for gentlemen of your talents.
Mfg,
Robert
