Musikgerät RF430

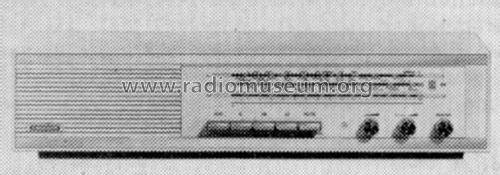

Musikgerät RF430; Grundig Radio- (ID = 1489347) Radio Musikgerät RF430; Grundig Radio- (ID = 39763) Radio
Musikgerät RF430; Grundig Radio- (ID = 1267320) Radio
Use red slider bar for more.

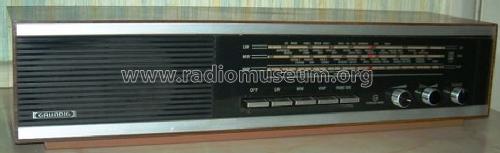

Musikgerät RF430; Grundig Radio- (ID = 1489347) Radio
Grundig Radio-: Musikgerät RF430 [Radio] ID = 1489347 933x287
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät RF430, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Für Modell Musikgerät RF430, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1972–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Musikgerät RF430 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 120 x 150 mm / 20.9 x 4.7 x 5.9 inch
Notes
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973
