• Year
  • 1970–1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28405
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

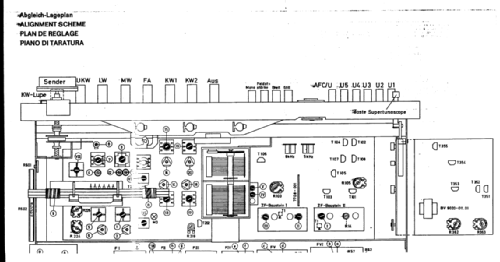

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 45
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     15 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RT200 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 500 x 150 x 290 mm / 19.7 x 5.9 x 11.4 inch
  • Notes

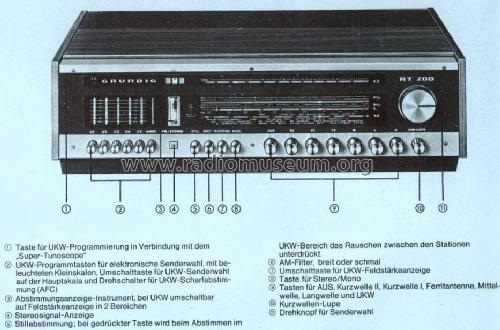

  • Grundig HiFi-Stereo-Mehrbereich-Tuner RT200. Technische Daten und Ausführung wie RT100a, jedoch Front in dunklem Design.

    Wellenbereiche:

    UKW 87,5 - 108 MHz
    LW 145 - 350 kHz
    MW 510 - 1620 kHz
    KWI 3,15 - 8,8 MHz
    KWII 8,6 - 22,5 MHz

  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
