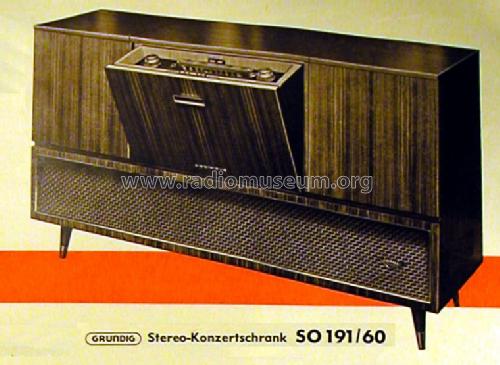

Stereo-Konzertschrank SO191/60

Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 101055) Radio

Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 101056) Radio
Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 326237) Radio Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 437349) Radio
Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 437350) Radio Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 491594) Radio
Use red slider bar for more.
Stereo-Konzertschrank SO191/60; Grundig Radio- (ID = 326237) Radio
Grundig Radio-: Stereo-Konzertschrank SO191/60 [Radio] ID = 326237 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Konzertschrank SO191/60, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1959/1960 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16: EC92 EC92 ECH81 EF89 EM84 EBF89 EF80 EAA91 EC92 ECC83 ECC83 ECC83 EL95 EL95 EL95 EL95
Principle Super-Heterodyne (Super in general)
Tuned circuits 9 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: Stereo-Konzertschrank SO191/60 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1460 x 850 x 410 mm / 57.5 x 33.5 x 16.1 inch
Notes Phono-Chassis = ELAC PW9.
Price in first year of sale 1,340.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60
