• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1976/1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88693

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

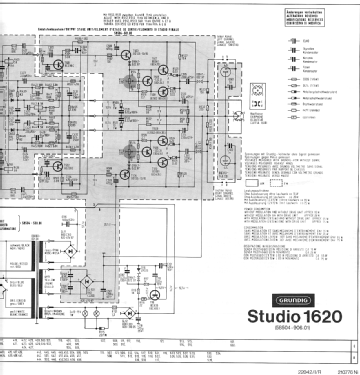

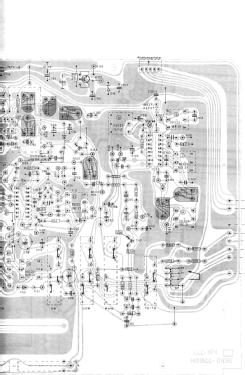

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org

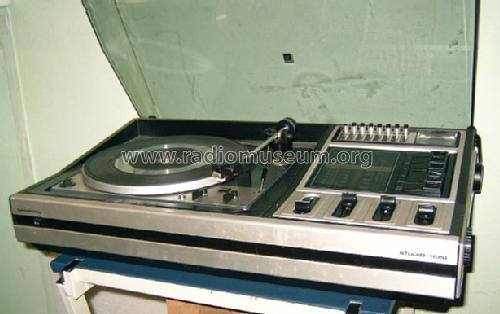

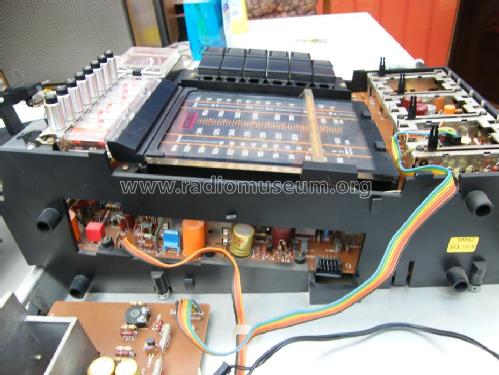

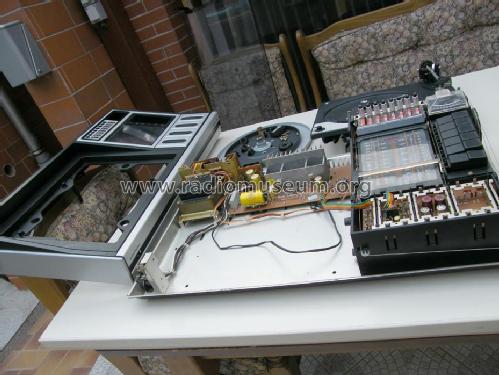

• Model: Studio 1620 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 670 x 180 x 380 mm / 26.4 x 7.1 x 15 inch

• Notes
• ICs: 4.
  Kompakt-Studio. Stereo-NF-Verstärker mit 2 Endstufen je 20 W;
  Phono-Chassis = Dual 1225 mit Magnetsystem Shure M75-D.
  2 Ausführungen: bronze und schwarz.

• Source of data
• Handbuch VDRG 1976/1977

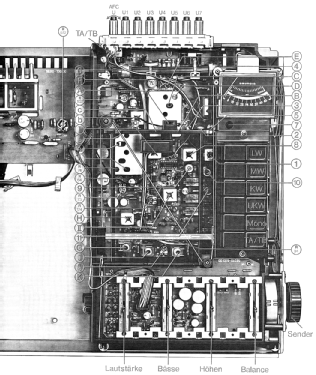

• Literature/Schematics (1)

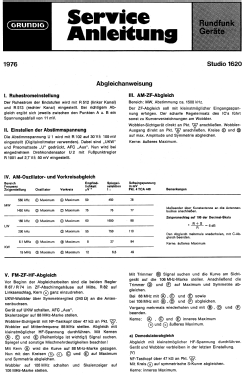

• -- Original-techn. papers.

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
