Verkehrs-Rundfunk-Decoder VD3

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1974/1975
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 29410
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

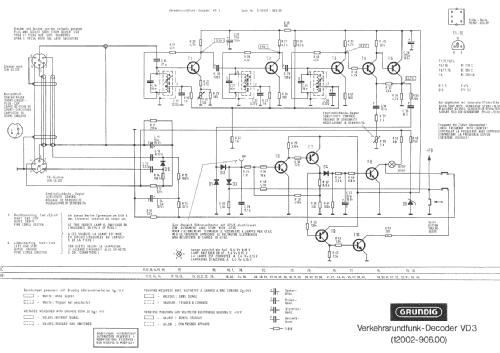

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Power type and voltage
  • Storage and/or dry batteries / 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Verkehrs-Rundfunk-Decoder VD3 - Grundig Radio-Vertrieb, RVF,
  • Dimensions (WHD)
  • 114 x 35 x 70 mm / 4.5 x 1.4 x 2.8 inch
  • Notes
  • Transistoren: 6 x BC238C; 3 x BC308C; BC338/40
  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • External source of data
  • Erb
  • Mentioned in
  • Grundig Technische Informationen Nr. 4-1974
