For model Grunow Teledial 1291 Ch= 12B, General Household Utilities Co. (Grunow); Chicago Ill.:
Reprocessed photo.

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1936–1938 perfect model Type: Broadcast Receiver - or past WW2 Tuner

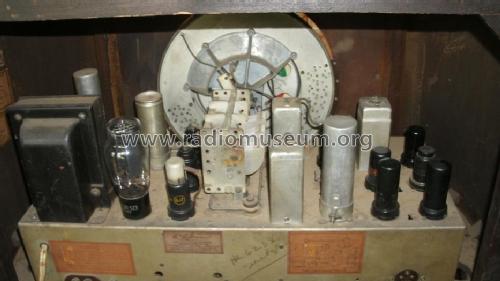

Valves / Tubes 12: 6K7 6A8 6J7 6K7 6K7 6H6 6C5 6C5 6C5 6F6 6F6 5Z3
Principle Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Grunow Teledial 1291 Ch= 12B - General Household Utilities Co
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 26 x 42 x 15 inch / 660 x 1067 x 381 mm
Notes

This 1937 model must have been released in (late) 1936 to get the X-mas sales. It was advertised with Shirley Temple promoting the Radio with reference to her motion picture "The Bowery Princess" of 1936. Further: the schematic is found in Rider's Perpetual, vol.7, which covers End 1935 to End 1936, not later. All that justifies the dating 1936/37
Beitman shows Grunow chassis: 12B, 12W for models: 1291, 1297 for the same schematic. The same is for Rider's page 7-35 for General Household. One might think both chassis are used for both models but we believe it is meant only that the Grunow chassis 12B is used for model 1291 and the 12W chassis for model 1297. Therefore we show two models, not 4 as other sources. See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

Net weight (2.2 lb = 1 kg) 35.45 lb (35 lb 7.2 oz) / 16.094 kg
Price in first year of sale 99.95 $
Collectors' prices
Source of data Pre-War Consoles; Stein, 2000

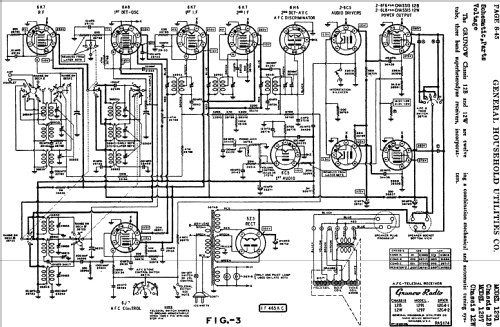

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to AR6.Ed. Slusser tube
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 01, 1926-1938 (Rider's Perpetual, Volume 8 = 1937 and before)
Literature/Schematics (2) Radio Retailing (R & Television R.) (March 1937.)
Literature/Schematics (3) The Grunow Folder for 1937 and 1938.

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
