Nordmark-Super W Hochformat
Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Country
- Germany
- Manufacturer / Brand
- Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2281
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle

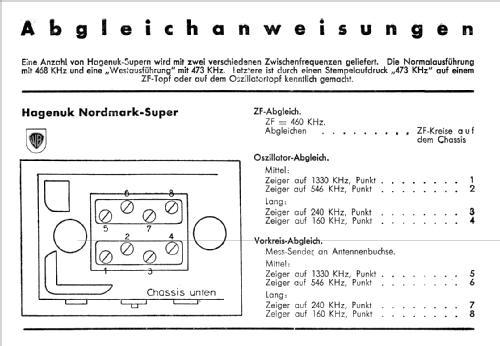

- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Nordmark-Super W [Hochformat] - Hagenuk N&K, Hanseatische App.
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 435 x 510 x 270 mm / 17.1 x 20.1 x 10.6 inch
- Notes
-
Feldstärke-Anzeige; Sendereinstellung durch Telefon-Wählscheibe. [573];
Preis ohne Röhren RM 279,75
- Price in first year of sale
- 348.00 RM !
- Source of data
- Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Funkgeschichte der GFGF (8437)
- Literature/Schematics (1)
- Kat. Schmolke, 1935/36.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
