S-37

S-37; Hallicrafters, The; (ID = 463725) Receiver-C

S-37; Hallicrafters, The; (ID = 463726) Receiver-C

S-37; Hallicrafters, The; (ID = 463727) Receiver-C

S-37; Hallicrafters, The; (ID = 463728) Receiver-C

S-37; Hallicrafters, The; (ID = 463729) Receiver-C

S-37; Hallicrafters, The; (ID = 463730) Receiver-C

S-37; Hallicrafters, The; (ID = 463731) Receiver-C

S-37; Hallicrafters, The; (ID = 463732) Receiver-C

S-37; Hallicrafters, The; (ID = 463733) Receiver-C

S-37; Hallicrafters, The; (ID = 463734) Receiver-C
S-37; Hallicrafters, The; (ID = 1426747) Receiver-C S-37; Hallicrafters, The; (ID = 1189587) Receiver-C
S-37; Hallicrafters, The; (ID = 1189588) Receiver-C
Use red slider bar for more.
S-37; Hallicrafters, The; (ID = 1426747) Receiver-C
Hallicrafters, The;: S-37 [Receiver-C] ID = 1426747 933x469
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-37, Hallicrafters, The; Chicago (IL):
eigenes Gerät

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago (IL)
Year: 1945–1948 Type: Communication/Commercial Receiver (also Amateur)
Valves / Tubes 14: 954 954 954 955 6AC7 6AB7 6SK7 6H6 6AC7 6H6 6SC7 6V6 VR150 5U4
Principle Superhet with RF-stage; ZF/IF 18000 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 117/230 / 6 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: S-37 - Hallicrafters, The; Chicago IL
Material Metal case
Shape Tablemodel, low profile (big size).
Notes Coverage:1 Band, 130-210MHz AM/FM DC Operation also by a 6Volt Storage Battery and "B" Batteries or Vibrapack.
Price in first year of sale 592.00 $
External source of data Ernst Erb
Source of data Communication Receivers

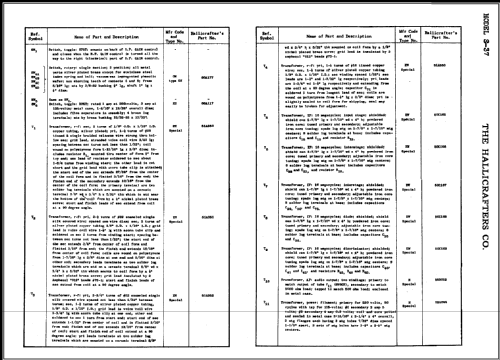

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Radio Retailing (R & Television R.) (March 1947 page 74.)
