S-76

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1951–1955

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
77655

Schematics

S-76; Hallicrafters, The; (ID = 2951988) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951989) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951990) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951991) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951992) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951993) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951994) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951995) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951996) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951997) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2951998) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 1418567) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 1418569) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 1418570) Amateur-R — Hallicrafters, The; S-76 (3)

S-76; Hallicrafters, The; (ID = 2656594) Amateur-R — Hallicrafters, The; S-76 (1)
Hallicrafters S-76 receiver

S-76; Hallicrafters, The; (ID = 2656595) Amateur-R — Hallicrafters, The; S-76 (1)
Hallicrafters S-76 receiver chassis top view

S-76; Hallicrafters, The; (ID = 2656596) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 209217) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 209218) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1326290) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 1340953) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 1345090) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 1623247) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 1770218) Amateur-R — Hallicrafters, The; S-76 (1)
Zustand vor Restaurierung.

S-76; Hallicrafters, The; (ID = 1835854) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835855) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835856) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835857) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835858) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835859) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835860) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1835861) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 1955618) Amateur-R — Hallicrafters, The; S-76 (1)

S-76; Hallicrafters, The; (ID = 2050537) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 2050538) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 2050539) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 2072186) Amateur-R — Hallicrafters, The; S-76 (2)

S-76; Hallicrafters, The; (ID = 2564356) Amateur-R — Hallicrafters, The; S-76 (1)
Hallicrafters S-76 and R-46 front

S-76; Hallicrafters, The; (ID = 2564357) Amateur-R — Hallicrafters, The; S-76 (1)

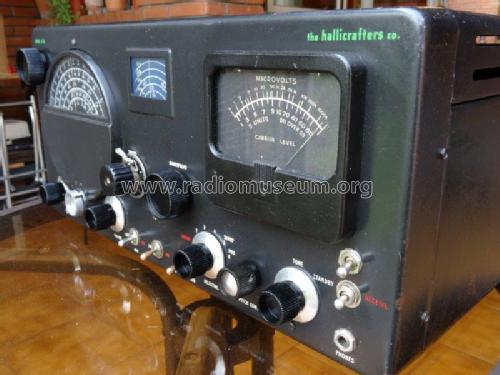

Hallicrafters S-76 front

S-76; Hallicrafters, The; (ID = 2564358) Amateur-R — Hallicrafters, The; S-76 (1)
Hallicrafters S-76 back

S-76; Hallicrafters, The; (ID = 2564359) Amateur-R — Hallicrafters, The; S-76 (1)
Hallicrafters S-76 chassis

S-76; Hallicrafters, The; (ID = 2811675) Amateur-R — Hallicrafters, The; S-76 (2)
Hallicrafters Print Ad

S-76; Hallicrafters, The; (ID = 2951987) Amateur-R — Hallicrafters, The; S-76 (2)

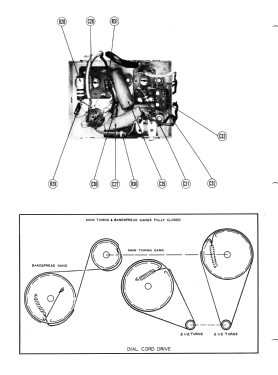

Picture from service manual.
