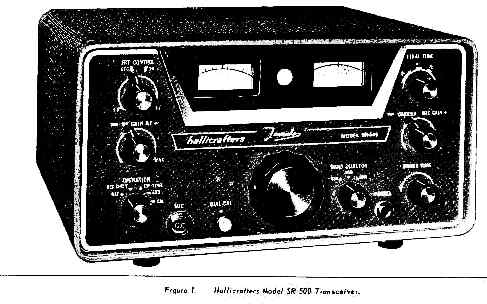

Tornado SR-500 (SR500)


Country: United States of America (USA) Manufacturer/Brand: Hallicrafters, The; Chicago (IL)
Year: 1965 Type: Amateur Transceiver Mod.-ID = 80640 previous | Result List | next | New search for Radios etc. Schematics etc.: 0 (for members) Principle Superhet, single span; IF-Freq. 5200 kHzSingle-span superhet. High IF - like 1650 kHz
Receives broadcast (MW) and long wave in one range.
Einbereichs-Super.
Bei diesem System liegt die ZF-Frequenz über dem MW-Band, z.B. bei 1650 kHz. Vor allem bestreicht das Gerät MW und LW ohne Wellenumschaltung. Es gibt auch Nicht-Einbereichs-Super mit der hohen ZF!

Wave bands Wave Bands in notes or not known yet.Bitte geben Sie die Wellenbänder an, falls Sie mehr wissen.
Power type and voltage Line / Storage Batteries / 117/12 VoltLine supply as well as storage battery supply - often battery can be loaded by the line power. Take the battery out because it can leak!
Alimentation secteur et alimentation de batterie possible.
Netz- und Akku-Speisung - meist mit eingeb. Ladegerät.
Das Gerät - meist ein Reiseapparat - lässt sich aus dem Netz oder aus Akkus speisen. Solche Akkus können heute auslaufen - darum entfernen!

Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
/ 2 W

www.radiomuseum.org Model: Tornado SR-500 (SR500) Material Metal caseMetal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13 x 6.4 x 11 inch / 330 x 163 x 279 mm
Valves / Tubes 16: 12AW6     (more for members)
Notes Covers 80, 40 and 20 meter, power input 500 watts P.E.P. SSB and 300 watts CW, features includes AALC, product detector, crystal lattice filter, crystal calibrator, RIT, RF output/S-meter, options include the HA-16 VOX Adaptor, choice of seperate power supplies PS-500AC (price 120 USD) for 117 volt AC operation and PS-500DC (price 160 USD) for 12 volt DC operation (mobile), MR-160 (price 40 USD) mobile mounting kit
Net weight (2.2 lb = 1 kg) 8.2 kg / 18.1 lb
Price in first year of sale 395 USD
Source of data Radios by hallicrafters, 1999, Chuck DachisRadios by hallicrafters, 1999, Chuck Dachis. Printed in China, ISBN: 0-7643-0807-6.
Mentioned in The Hallicrafters Story 1933-1975, de HenselerThe Hallicrafters Story 1933-1975, Max de Henseler (HB9RS), ARCA, Antique Radio Club of America, February 1991.

This model was suggested by Martin Renoth.
(Quelle: alt.binaries.pictures.radio)Die Abmessungen scheinen unstimmig hinsichtlich der Ausgangsleistung. (Quelle: Newsgroup alt.binaries.pictures.radio)
