Model: Ultra Skyrider S-10 (S10)



Old radios, englishAlte Radios, deutschRadios antiguas, españolMusée de radio, francaisRadio antiche, italiano
Antique radios, Old Time Radios

Please click your language flag. Bitte Sprachflagge klicken.

Ultra Skyrider S-10 (S10)


Country: United States of America (USA) Manufacturer/Brand: Hallicrafters, The; Chicago (IL)
Year: 1936 Type: Communication Receiver (also Amateur)Receiver used for civil commercial purposes, e.g. point-to-point maritime or aviation communications, used or second hand sets often used by radio amateurs. Often used also for military communications, partly special variants to military specifications. Mod.-ID = 30459 previous | Result List | next | New search for Radios etc. Schematics etc.: 1 (for members) Principle Superhet with RF-stage; IF-Freq. 1600 kHzSuperhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.

Tuned circuits 9 AM circuit(s);
Wave bands Short Wave (SW only)An exclusivly short wave receiver with probably several ranges and/or band spreading. Un recepteur exclusif pour des gammes d`ondes courtes - probablement avec plusieurs bandes et/ou étaleur de bande.
Reiner Kurzwellenempfänger. Möglicherweise sind mehrere Bänder und/oder Bandspreizung (KW-Lupe) möglich, doch fehlten bei der Erfassung diese Angaben.

Power type and voltage Alternating Current supply (AC) / 110 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.

Loudspeaker/pwr.out - This set has no built-in loudspeaker (separate or not necessary).This set has no built-in loudspeaker. It requires a separate loudspeaker or headset - or the set has no speaker output (not a radio).
Cet appareil n`a pas d`haut-parleur.
Das Gerät verfügt nicht über einen eingebauten Lautsprecher - entweder weil er nicht nötig ist (Gerät hat keine Tonwiedergabe) oder weil er separat zu stellen ist - bzw. das Gerät ist für Kopfhörerbetrieb.
/ 3.5 W

www.radiomuseum.org Model: Ultra Skyrider S-10 (S10) Material Metal caseMetal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.

Shape Tablemodel, low profile (big size).
Valves / Tubes 10: 6K7     (more for members)
Notes Coverage: 5.5-11.4, 10.5-21.4, 19.8-38.2, 37-79.5MHz, Less than 200 built, AS RECORDED IN THE 1979 AUGUST CQ BY BILL ORE. THE DESIGN WAS THE FORERUNNER OF THE WW2 S-36.HIGH FREQUENCY I-F STRIP, LAMBIC NOICE SILENCER
Price in first year of sale 100 USD
Source of data Communication ReceiversCommunication Receivers, R. S. Moore.

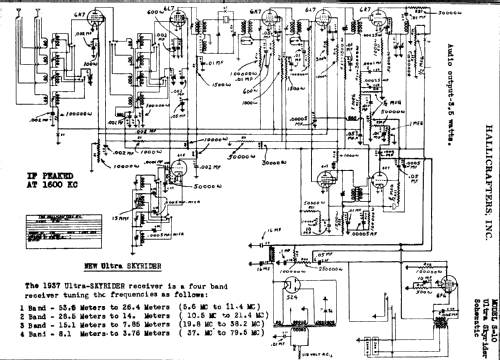

Circuit diagram reference Rider's Perpetual, Volume 9Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.




No further information on

Ultra Skyrider S-10 (S10) (Hallicrafters, The; Chicago (IL))
