• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1992 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 288956

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Compact Disc Player HD7300 - Harman Kardon; New York

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 443 x 103 x 328 mm / 17.4 x 4.1 x 12.9 inch

• Notes

• Frontloading Single Compact Disc Player Model Harman Kardon HD7300
  4 - 20000 Hz +/-0dB/-1,5dB
  Linear, 18-Bit, 4x Oversampling (176,4 kHZ)
  36 Track Memory
  Power Consumption 15 Watts
  Finish: black



• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Mentioned in

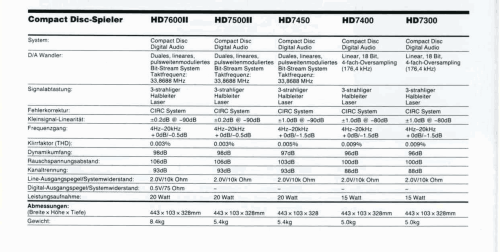

• -- Original prospect or advert (Harman Kardon Katalog 90')

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
