• Year
  • 1990/1991 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 125931

 Technical Specifications

  • Number of Transistors
  • 110
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 156 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

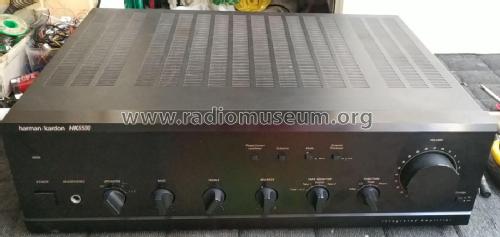

  • Model: HK-6500 - Harman Kardon; New York
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 443 x 134 x 359 mm / 17.4 x 5.3 x 14.1 inch
  • Notes
  • Komplett diskret aufgebaut, Bandbreite 0,4-200000 Hz. Sehr aufwendige Überstromschutzschaltung.
    Aus thermischen Gründe in der 240-V-Einstellung betreiben!
  • Net weight (2.2 lb = 1 kg)
  • 9.2 kg / 20 lb 4.2 oz (20.264 lb)
  • Price in first year of sale
  • 1,000.00 DM
  • Author
  • Model page created by Christoph Frohn. See "Data change" for further contributors.
