• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79148

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF167 BF195 BF194 BF194 BF194 BF194 BC148 BC148 AC127 AC132

• Main principle
• Superheterodyne (common); ZF/IF 461/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

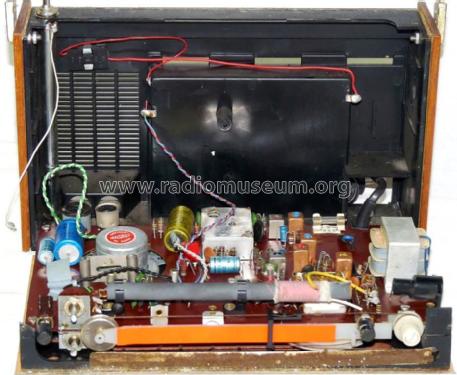

• Model: Donauland [1970 Batterie/Netz] - HEA; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 160 x 75 mm / 10.4 x 6.3 x 3 inch

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
