De Luxe 54 Original circuit
Healing, A.G., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 262238

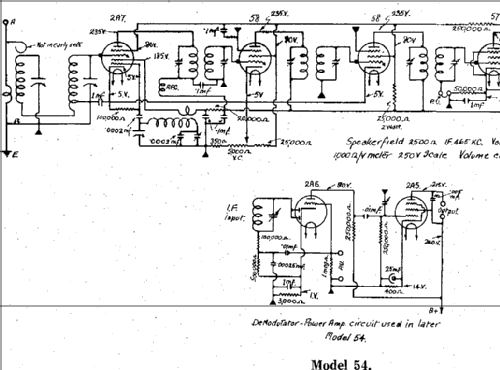

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s); Anode bend detection
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: De Luxe 54 [Original circuit] - Healing, A.G., Ltd.; Melbourne
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
6-valve, AC-Powered Superhet.

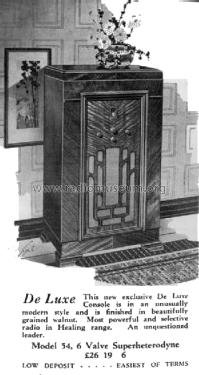

This new De Lux Console is in an unusually modern style and is finished in beautifully grained Walnut. The most powerful and selective radio in the Healing range.
See also the later revised circuit version.
- Price in first year of sale
- 26.98 AUS £
- Mentioned in
- Mingay's "Radio Diagram & I.F. Index
- Literature/Schematics (1)
- - - Manufacturers Literature (1934 Pamphlet.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 415 models, 220 with images and 175 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Healing, A.G., Ltd.; Melbourne
