Waldorf 701-23TML Ch= 701

Healing, A.G., Ltd.; Melbourne

  • Year
  • 1964
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 236801

 Technical Specifications

  • Number of Tubes
  • 16
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 36875/31375 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 230; 240; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Waldorf 701-23TML Ch= 701 - Healing, A.G., Ltd.; Melbourne
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

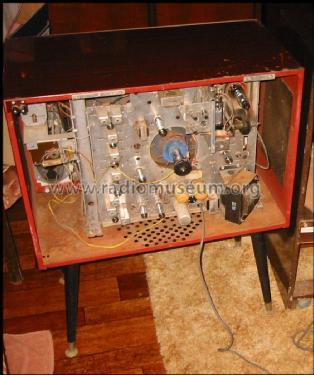

  • This 23 inch B&W television receiver tuned the 13 standard Australian VHF channels.

    Metalshield cabinet.

  • Price in first year of sale
  • 187.95 AUS £
  • Literature/Schematics (1)

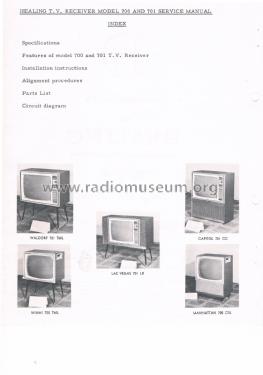

  • - - Manufacturers Literature (Service Data for Healing Television Models 700 & 701, 1st Edition 1964.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
