• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1957 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 165049

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AU7 12AU7 6L6G 6L6G 5V4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

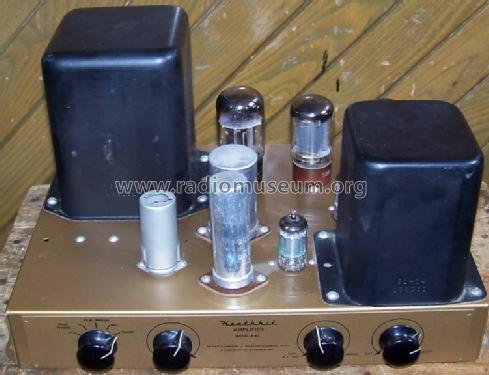

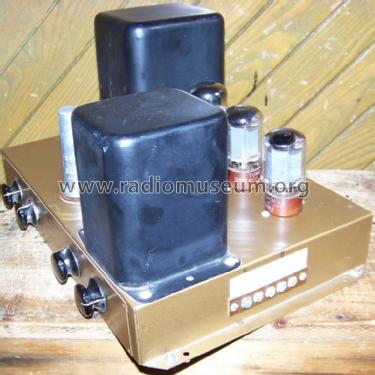

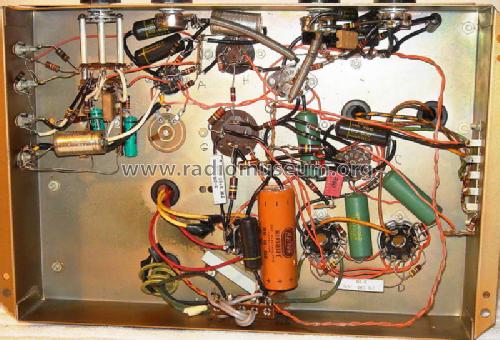

• Model: Amplifier A-9C - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14 x 7.38 x 8.88 inch / 356 x 187 x 226 mm

• Notes

• Integrated Amp, mono, Mag Phono equalization 78 and LP.

• Net weight (2.2 lb = 1 kg)
• 23 lb (23 lb 0 oz) / 10.442 kg

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
