• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80687

• • alternative name: Heath Company

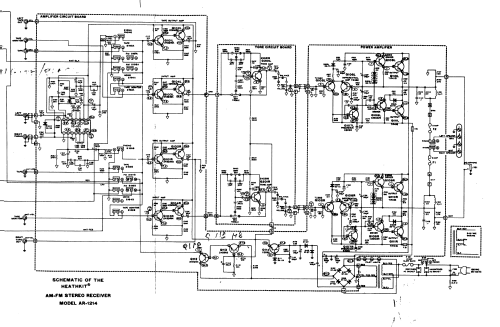

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AR-1214 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 432 x 98 x 330 mm / 17 x 3.9 x 13 inch

• Notes
• MW/UKW Stereo Empfänger 2 x 20 Watt. Bausatz 595 DM, Fertiggerät 895 DM.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Mentioned in
• -- Original prospect or advert (deutscher Heathkit Katalog 1973)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
