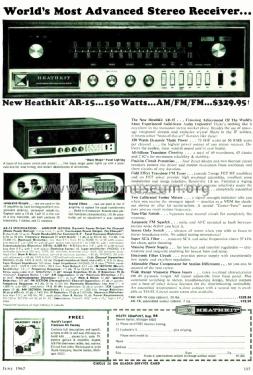

Heathkit Brand,: AR-15 [Radio] ID = 219291 800x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-15, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Ebay Nr. 5861533865

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1967 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 69: CA3012 CA3012
Principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage Alternating Current supply (AC) / 105–125; 210–250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 150 W (unknown quality)
from Radiomuseum.org Model: AR-15 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 429 x 122 x 369 mm / 16.9 x 4.8 x 14.5 inch
Notes 43 Dioden, 2 ICs. Ausgangsleistung: 2× 75 W, Ausgangsimpedanzen: 4/8/16 Ohm.
Extra nußbaumfurniertes Holzgehäuse AE-16: 95,- DM.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 1,750.00 DM
Mentioned in Heathkit-Katalog, Sommer 1967

Model page created by Trev Levick. See "Data change" for further contributors.
