For model Monitor Scope HO-10, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
aus Ebay Verk. crusaderzx Nr.5829684118

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1962–1966 Type: Amateur Equipment (Other, but not Key)
Valves / Tubes 6: 6BN8 6C10 6J11 12AU7 1V2 3RP1
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Monitor Scope HO-10 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 5 x 7 x 11 inch / 127 x 178 x 279 mm

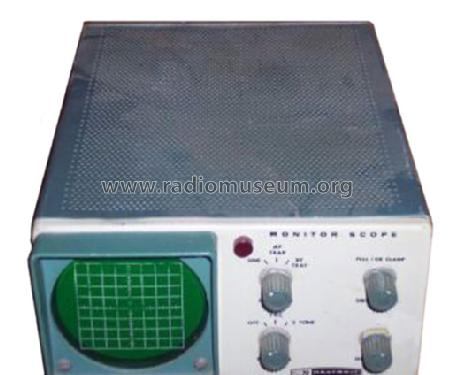

Notes Heathkit Monitor-Scope HO-10.

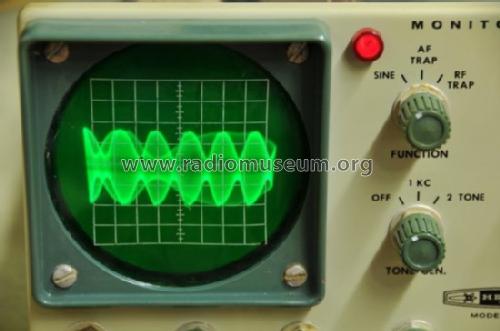

Transmitter monitor-scope (RF-envelope, RF-trapezoid and RTTY pattern).
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 60.00 $
External source of data Handbuch
Source of data Heathkit-A guide-Chuck Penson

Model page created by Alexander Küffer. See "Data change" for further contributors.
