Q-Meter QM1

Q-Meter QM1; Heathkit Brand, (ID = 1104214) Equipment

Q-Meter QM1; Heathkit Brand, (ID = 166068) Equipment
Q-Meter QM1; Heathkit Brand, (ID = 168407) Equipment Q-Meter QM1; Heathkit Brand, (ID = 168406) Equipment
Q-Meter QM1; Heathkit Brand, (ID = 168405) Equipment Q-Meter QM1; Heathkit Brand, (ID = 166067) Equipment
Q-Meter QM1; Heathkit Brand, (ID = 757967) Equipment Q-Meter QM1; Heathkit Brand, (ID = 1418206) Equipment
Q-Meter QM1; Heathkit Brand, (ID = 1558041) Equipment Q-Meter QM1; Heathkit Brand, (ID = 1558042) Equipment
Q-Meter QM1; Heathkit Brand, (ID = 1662124) Equipment Q-Meter QM1; Heathkit Brand, (ID = 1662125) Equipment
Use red slider bar for more.
Q-Meter QM1; Heathkit Brand, (ID = 168407) Equipment
Heathkit Brand,: Q-Meter QM1 [Equipment] ID = 168407 800x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q-Meter QM1, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Ebay Verk. edsresale Nr. 7579034567

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1955 Type: Service- or Lab Equipment
Valves / Tubes 4: 12AT7 6AL5 12AT7 6X5 0D3
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Q-Meter QM1 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17 x 8 x 6 inch / 432 x 203 x 152 mm
Notes Q - Meter, 150kHz-18MHz.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Collectors' prices

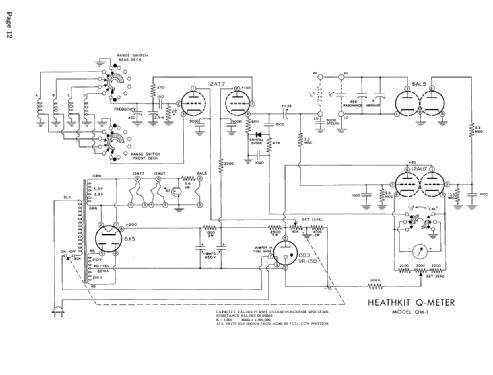

Literature/Schematics (1) -- Schematic (Radio Constructeur et Dépanneur mars 1955)
