SSB/CW-Transceiver SB-102

SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 60437) Amateur

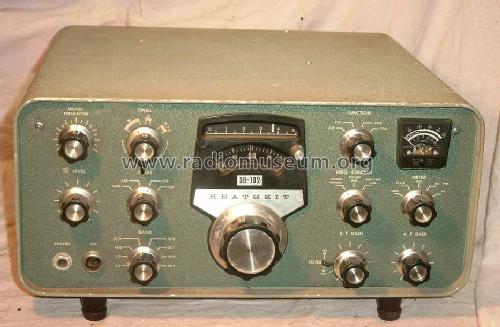

SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 73513) Amateur SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 125653) Amateur
SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 60435) Amateur SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 125654) Amateur

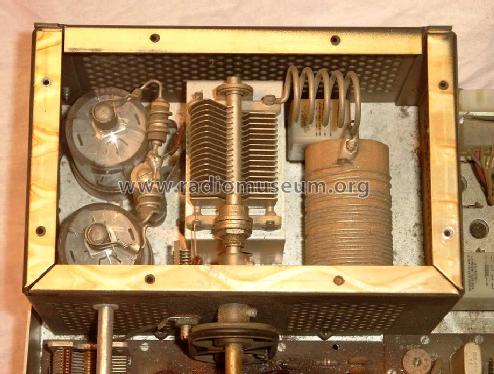

SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 125655) Amateur SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 125656) Amateur
SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 125657) Amateur SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 1473285) Amateur
SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 1559898) Amateur SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 1559899) Amateur
Use red slider bar for more.
SSB/CW-Transceiver SB-102; Heathkit Brand, (ID = 73513) Amateur
Heathkit Brand,: SSB/CW-Transceiver SB-102 [Amateur] ID = 73513 640x384

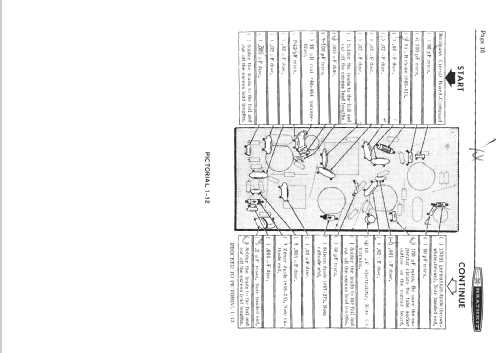

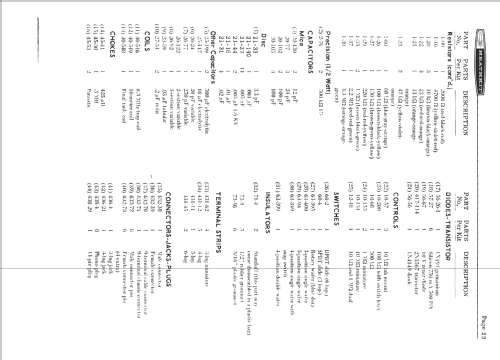

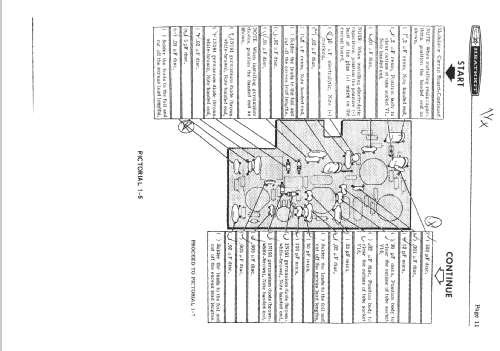

Select picture or schematic to display from thumbnails on the right and click for download.
For model SSB/CW-Transceiver SB-102, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Damit bin ich täglich QRV!

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1970–1975 Type: Amateur Transmitter/Receiver (and Transceiver)
Valves / Tubes 18: 6HS6 6AU6 6AU6 6AU6 6AU6 6BN8 6CB6 6CL6 6EA8 6EA8 6EA8 6EA8 6GW8 12AT7 12AT7 12AU7 6146 6146 0A2
Semiconductors (the count is only for transistors) 3:
Principle Transceiver; ZF/IF 3395 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit. / 0 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2 W (unknown quality)
from Radiomuseum.org Model: SSB/CW-Transceiver SB-102 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 6.75 x 14 inch / 381 x 171 x 356 mm
Notes

Heatkit HF-Transceiver SB-102.
Double-conversion. SSB/CW, 400 Hz CW xtal-filter avialable, eight 500 kHz HAM-Bands between 3.5 and 29.5 MHz. Approx. 100 watts output. Most successful SB-series transceiver! Mainly sold in kit-form. Needs power-supply HP-23.

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 380.00 USD
Collectors' prices
External source of data Eilert Menke
Mentioned in Heathkit-A guide-Chuck Penson

Model page created by a member from D. See "Data change" for further contributors.

All listed radios etc. from Heathkit (Brand), Heath Co.; Benton Harbor (MI)
Here you find 620 models, 602 with images and 442 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.




Forum contributions about this model
Heathkit Brand,: SSB/CW-Transceiver SB-102
Threads: 2 | Posts: 5
Hits: 852     Replies: 0
heath: SB-102, Anmerkung zum Preis vom 13.Jun.08 (Ebay
Eilert Menke
15.Jun.08
  1

- Mikrofonbuchse (DIN) nicht original, dafür zwei zusätzliche Bohrungen durch Frontplatte

- zwei weitere Bohrungen durch Frontplatte für unbestimmten Zweck

- oben Zusatzlautsprecher eingebaut. Nicht erkennbar, ob reversibel (Schraubendurchmesser)

- im Netzteilgehäuse befinden sich ebenfalls zwei zusätzliche Buchsen, für die Löcher gebohrt wurden


Hits: 3871     Replies: 3
Heathkit SB102
Mietek Jozwik
05.May.06
  1 I am looking for any experience in replacing original transmiter output tubes 6146 by the other tube model.
Michael Schlör
05.May.06
  2 Hello Mietek,

over the decades I used several pairs of the 6146 family, such as 6146A, 6146B and the rugged 6146W. You only have to re-neutralize the PA. Don't mix different tube models, always use a pair of the same tube type. Depending your power-supply, I would prefer the -B or -W tubes. Those can work better with Ua over 850V DC. There is a difference in Plate Dissipation: the 6146, 6146A and 6146W 25W, the 6146B 35W
73,
Michael Schlör
DJ8IJ
Mietek Jozwik
08.May.06
  3 Hi, thanks for answer.
The problem with that tube is they are practically not available in Poland. So I am looking for replacemnt. Some TV's sweep tubes looks similar in catalogs but dummy replacement can fire out nice old piece of equipment.
Vy, 73
Mietek
sp5hbt
Michael Schlör
08.May.06
  4 Hello again,

DO NOT use any TV sweep tubes!! This will damage your SB102!! If they look similar to the 6146's, for shure: they are NOT the same. The tube data will be completely different! It's very difficult to redesign the PA-tube configuration for a sweep tube as well as the Pi-network!
The only replacement-tubes you can use are:
8298A or QE05/40 or YL1370.
These tubes can be used by only neutralizing the PA.

73,
Michael Schlör
DJ8IJ
