Frequency Display SB-650

Frequency Display SB-650; Heathkit Brand, (ID = 165441) Amateur-D

Frequency Display SB-650; Heathkit Brand, (ID = 165442) Amateur-D
Frequency Display SB-650; Heathkit Brand, (ID = 767010) Amateur-D Frequency Display SB-650; Heathkit Brand, (ID = 165416) Amateur-D
Frequency Display SB-650; Heathkit Brand, (ID = 767011) Amateur-D Frequency Display SB-650; Heathkit Brand, (ID = 767012) Amateur-D
Frequency Display SB-650; Heathkit Brand, (ID = 767013) Amateur-D
Use red slider bar for more.
Frequency Display SB-650; Heathkit Brand, (ID = 767010) Amateur-D
Heathkit Brand,: Frequency Display SB-650 [Amateur-D] ID = 767010 933x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequency Display SB-650, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
Ebay 320531235643

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1972–1975 Type: Amateur Equipment (Other, but not Key)
Valves / Tubes 6:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequency Display SB-650 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 254 x 89 x 254 mm / 10 x 3.5 x 10 inch

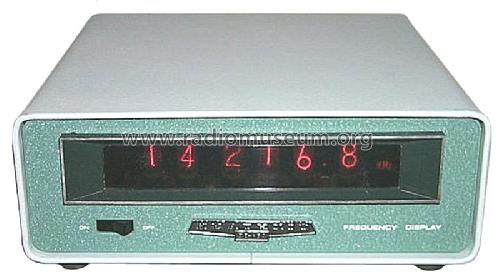

Notes Heathkit Frequency display SB-650 for Heathkit SB-Series. Mixing BFO, HFO and LMO signals, 6 Nixie Tubes NL-1220.
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 200.00 USD
Collectors' prices
Mentioned in Heathkit-A guide-Chuck Penson
Literature/Schematics (1) -- Schematic

Model page created by Hinrich Grensemann. See "Data change" for further contributors.
