Tube Checker IT-3117

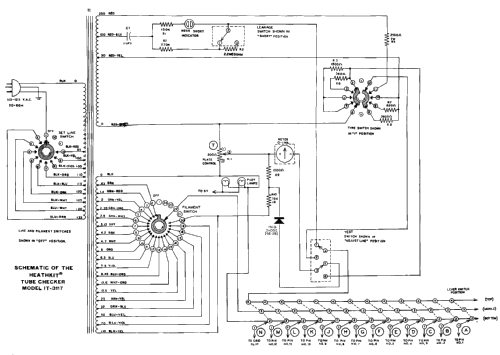

Tube Checker IT-3117; Heathkit Brand, (ID = 157529) Equipment
Tube Checker IT-3117; Heathkit Brand, (ID = 157530) Equipment Tube Checker IT-3117; Heathkit Brand, (ID = 157531) Equipment
Tube Checker IT-3117; Heathkit Brand, (ID = 157532) Equipment
Use red slider bar for more.
Tube Checker IT-3117; Heathkit Brand, (ID = 157530) Equipment
Heathkit Brand,: Tube Checker IT-3117 [Equipment] ID = 157530 727x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tube Checker IT-3117, Heathkit (Brand), Heath Co.; Benton Harbor (MI):
aus Ebay Verk. vinylcanuk Nr. 7562855893

Country:  United States of America (USA)
Manufacturer / Brand:  Heathkit (Brand), Heath Co.; Benton Harbor (MI)
alternative name

Heath Company
Year: 1977 ? Type: Service- or Lab Equipment
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tube Checker IT-3117 - Heathkit Brand, Heath Co.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 8.5 x 5.5 inch / 330 x 216 x 140 mm
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hinrich Grensemann. See "Data change" for further contributors.
