• Country
• Finland

• Manufacturer / Brand
• Oy Helvar; Helsinki

• Year
• 1947–1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206322

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 6K7G 6K7G EBL21 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

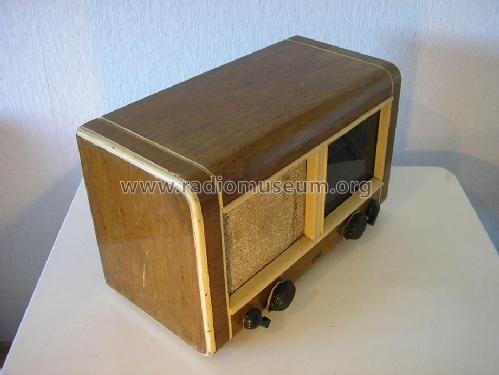

• Model: Versa Unknown - Oy Helvar; Helsinki

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 314 x 240 mm / 20.5 x 12.4 x 9.4 inch

• Notes
• Model unknown because the back plate is missing.
  Suomi-Finland Patent nr: 239513

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
