• Country
• Great Britain (UK)

• Manufacturer / Brand
• His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153205

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• X61M KTW61M DH63M KT61 U50

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 195 - 255 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

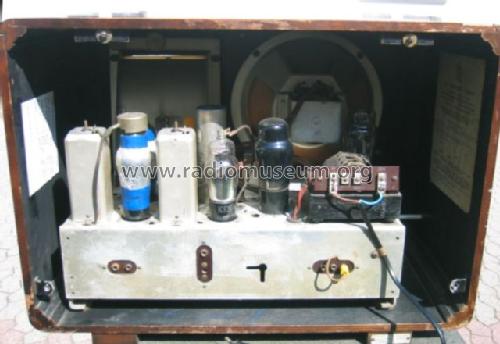

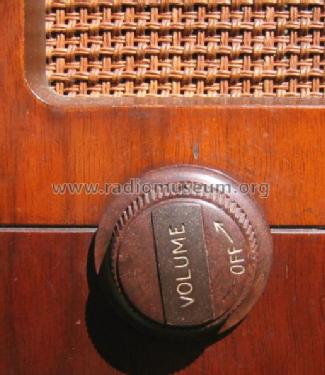

• Model: 1107 - His Master's Voice Masters,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 360 x 270 inch / 12700 x 9144 x 6858 mm

• Net weight (2.2 lb = 1 kg)
• 14.6 kg / 32 lb 2.5 oz (32.159 lb)

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.

• Other Models

• Here you find 414 models, 323 with images and 242 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
