Upright Grand 157
His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1927–1929
- Category
- Talking machine - Mechanical Gramophone/Phonograph
- Radiomuseum.org ID
- 106745
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Solar- and/or muscle driven, also addl. power jack possible
- Loudspeaker
- Horn
- Material
- Wooden case
- from Radiomuseum.org
- Model: Upright Grand 157 - His Master's Voice Masters,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 18 x 36 x 20 inch / 457 x 914 x 508 mm
- Notes

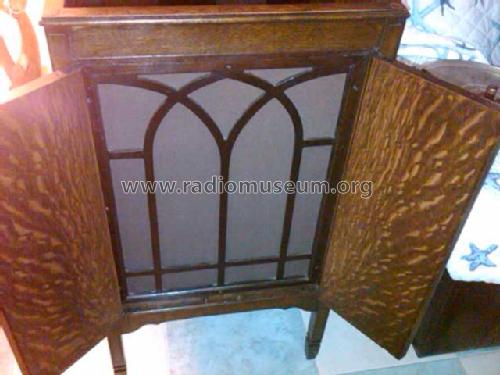

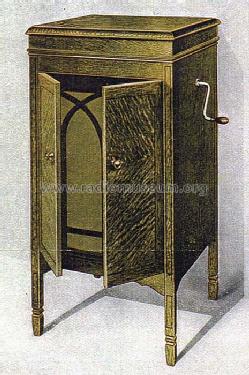

- Standalone model with exponential loudspeaker. In Mahagony or Oak. Same chassis as modell 157.
- Price in first year of sale
- 25.00 GBP
- External source of data
- HMV gramophones 1921 - 1936
- Source of data
- - - Data from my own collection
- Author
- Model page created by Nico Pokrant. See "Data change" for further contributors.
- Other Models
-
Here you find 414 models, 323 with images and 242 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Collections
The model Upright Grand is part of the collections of the following members.
Forum contributions about this model: His Master's Voice: Upright Grand 157
Threads: 1 | Posts: 2

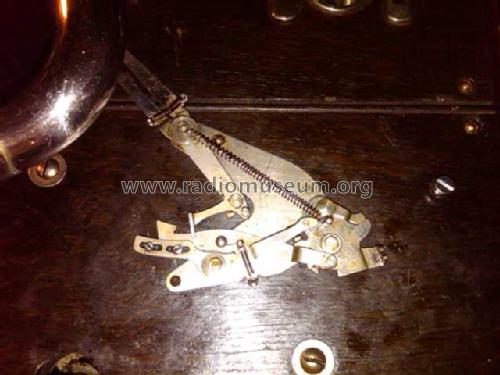

Ho restaurato un esemplare di questo magnifico grammofono che aveva un serio problema. Il regolatore di velocità aveva una delle tre masse mancanti e la relativa molla rotta. Ho cercato invano di trovare il pezzo mancante, poi ho trovato una soluzione semplice ma nello stesso tempo, (perdonatemi il termine), geniale, perchè a noi italiani si può dire tutto ma siamo maestri nell'arte d'arrangiarci. Con un semplice pezzo di piombo preso dalla mia cassetta della pesca ho risolto il problema. Il regolatore non produce vibrazioni e funziona benissimo. Ho fatto andare il motore senza il freno frizione e la nuova massa si comporta esattamente come le altre due, nonostante l'elevato numero di giri. A distanza di molti giorni e numerose ore di funzionamento e....tante puntine, il sistema è stabile.
Un cordiale saluto a tutti
Giordano De Vita
Attachments
- controllo velocità (37 KB)
Giordano De Vita, 24.Sep.12
