• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 236294

• • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• HR5 HR5

• Number of Transistors
• 9

• Semiconductors
• 2SC535 2SC535 2SC460 2SC460 2SC460 2SC458 2SB77 2SB77 2SD77 1N60 1N60 1N60 1N60 1N60 1N34A

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / AC 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.45 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

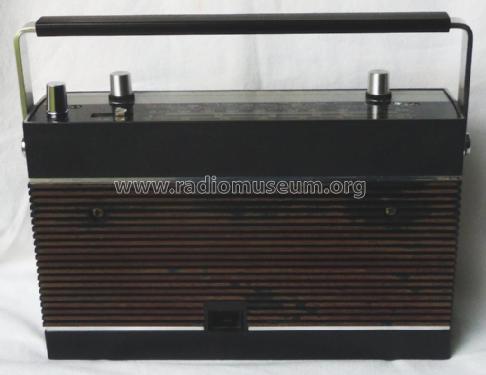

• Model: All Transistor Portable Radio KH-985 - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 136 x 50 mm / 7.9 x 5.4 x 2 inch

• Notes

• PM oval loudspeaker: 8 x 12 cm, 8 ohm.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Hannu Alho. See "Data change" for further contributors.
