• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8606

• • Brand: Hornyphon

• Number of Tubes
• 4

• Valves / Tubes
• A442 A415 A425 B443

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

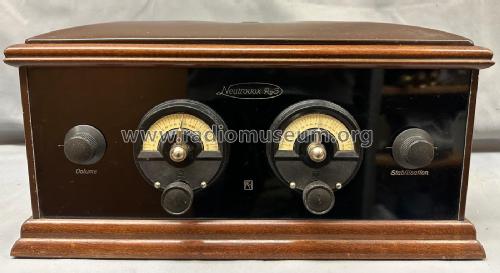

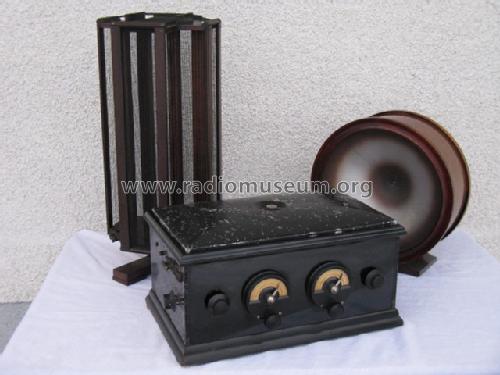

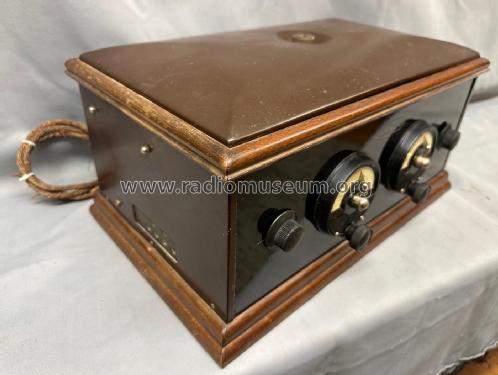

• Model: Neutrovox A2S - Horny Hornyphon; Wien

• Dimensions (WHD)
• 460 x 250 x 285 mm / 18.1 x 9.8 x 11.2 inch

• Notes
• Art.1601a Wellenbereich 200 - 2000 m; Art.1601b Wellenbereich 20 - 2000 m; Art.1601c Wellenbereich 20 - 4000 m.

• Net weight (2.2 lb = 1 kg)
• 7.050 kg / 15 lb 8.5 oz (15.529 lb)

• Price in first year of sale
• 570.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
