Prinz W353A /00 /70

Horny (Hornyphon); Wien

  • Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 73275
    • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

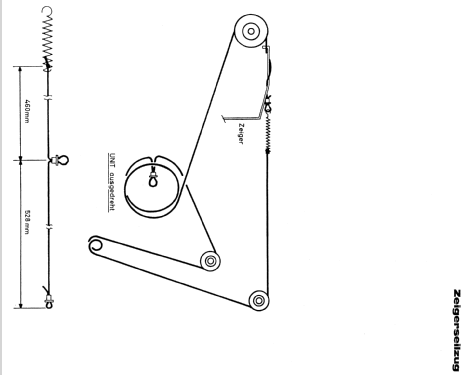

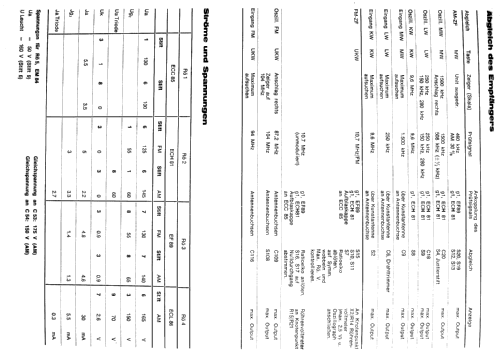

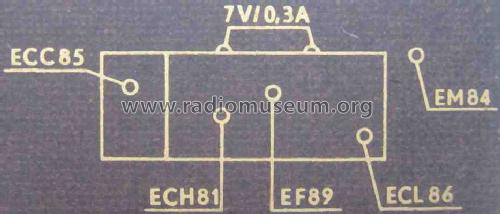

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Prinz W353A /00 /70 - Horny Hornyphon; Wien

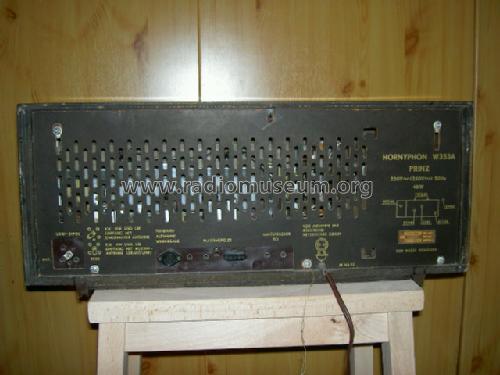

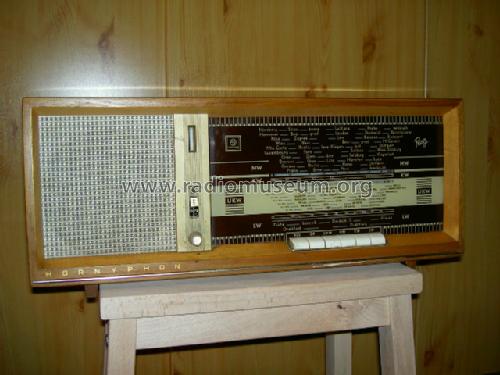

  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 520 x 230 x 180 mm / 20.5 x 9.1 x 7.1 inch
  • Notes
  • 2 Ausführungen:
    /00 = dunkles Holz, hochglanz
    /70 = helles Holz, matt

    Parallelgerät zum Philips Soirée B3A33A.

  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Price in first year of sale
  • 1,995.00 ATS
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Martin Fichtinger. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Prinz is part of the collections of the following members.

 Forum

Forum contributions about this model: Horny Hornyphon;: Prinz W353A /00 /70

Threads: 1 | Posts: 1

Kontrolle der Betriebsspannung am Gleichrichter: Beim Einschalten 210 V, sobald die Röhren warm werden geht die Spannung immmer mehr zurück, bis auf etwa 120 V. Am Kathodenwiderstand der Endröhre nur etwa 1,5 V, also keine überhöhte Stromaufnahme der Endröhre.

Ursache war der Selengleichrichter. Mit einem Si-Gleichrichter (B500 C2200/3200) beträgt die Spannung am Gleichrichter beim Einschalten 240 V und nach ca. 15 Minuten Betrieb 210 V, damit funktioniert das Gerät wieder einwandfrei.

Mit freundlichen Grüßen, Johannes Bernhauser

Johannes Bernhauser, 01.Aug.12
