Souverän 57 W796A

• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8903

• • Brand: Hornyphon

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

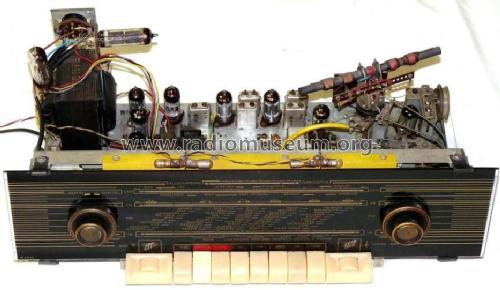

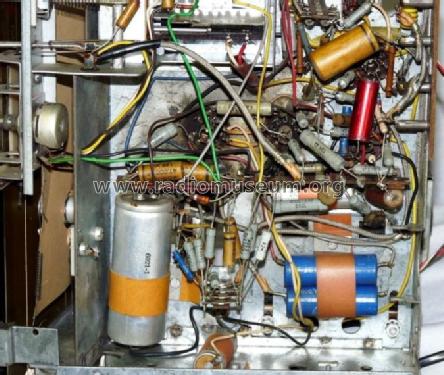

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EBC41 UL84 UL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

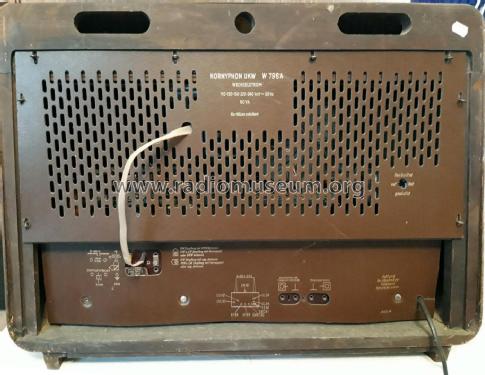

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

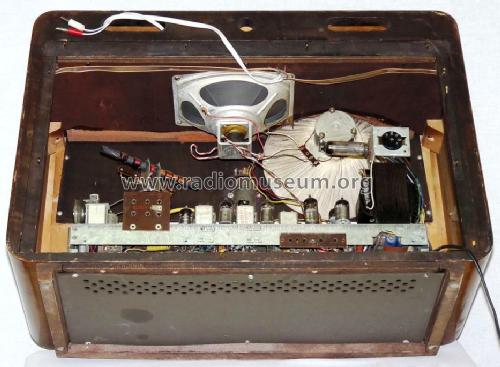

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Souverän 57 W796A - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 455 x 305 mm / 26 x 17.9 x 12 inch

• Notes
• 1 Lautsprecher 20 cm (rund) und 1 Ovallautsprecher 15 x 18 cm.
  "Eisenlose Endstufe"
  Paralleltype zum Philips Pastorale 57 B7A63A.

• Net weight (2.2 lb = 1 kg)
• 16.2 kg / 35 lb 10.9 oz (35.683 lb)

• Price in first year of sale
• 3,580.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
