• Country
• Japan

• Manufacturer / Brand
• Icom, Inoue Communication Equipment Corp.; Osaka

• Year
• 1978 ??

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 75532

• • alternative name: INOUE COMM. E. CORP

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 40

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10695/455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

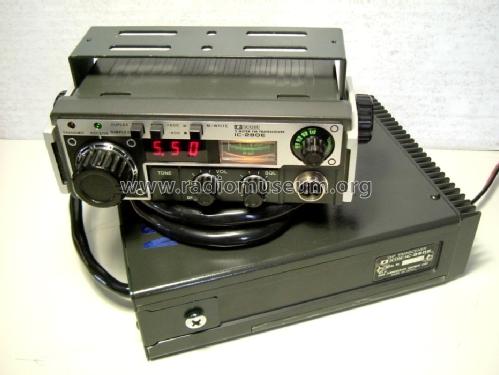

• Model: IC-280E - Icom, Inoue Communication

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 156 x 58 x 228 mm / 6.1 x 2.3 x 9 inch

• Notes
• ICOM Mobile-VHF-FM-Transceiver IC-280E.
  Coverage 144-146 MHz in 25-kHz-steps; 3 memories; P_out: 10 W/1 W.
  Remote control optional. ICs: 27, Diodes: 49.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Mentioned in
• RICOFUNK-Katalog 1980

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
